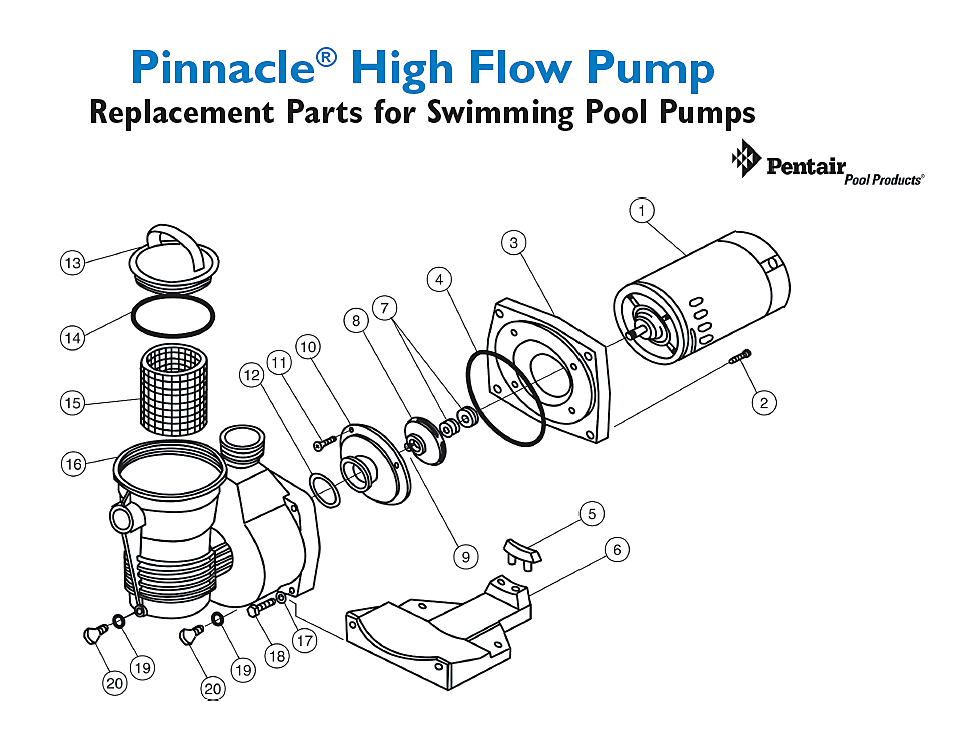

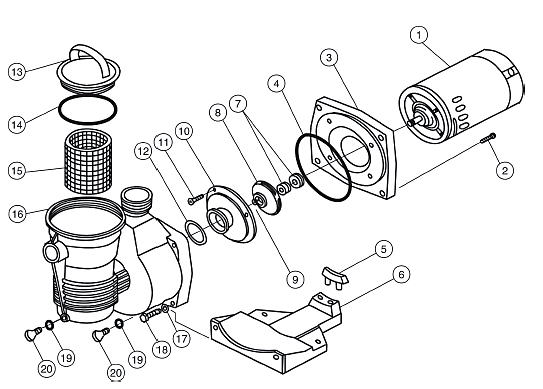

Pentair Pinnacle High Flow Pump

Select Manufacturer

Pentair

Pinnacle High Flow Pump

Legend	Code	Name	Unit Price
0	GO-KIT24-9	PACFAB PINNACLE PUMP KIT Legend: 0 Code: GO-KIT24-9 Unit Price: $67.28	$67.28
1	356440S	1-1/2 std. 48 frame thru-bolt 115/230, 23 lbs., black 2 Legend: 1 Code: 356440S Unit Price: $295.33	$295.33
1	356439S	1 std. 48 frame thru-bolt 115 only, black 2 Legend: 1 Code: 356439S Unit Price: $269.20	$269.20
1	356438S	3/4 std. 48 frame thru-bolt 115 only, black 2 Legend: 1 Code: 356438S Unit Price: $269.20	$269.20
1	075234S	SQFL 1 HP, 115/230V. Almond (355008S SF 1.9) Legend: 1 Code: 075234S Unit Price: $0.00	$0.00
1	355342S	2A std. sq. flg., 230 only, 32 lbs., black Legend: 1 Code: 355342S Unit Price: $420.55	$420.55
1	355340S	1-1/2A std. sq. flg., 115/230, 28 lbs., black Legend: 1 Code: 355340S Unit Price: $339.44	$339.44
1	075233S	1A std. sq. flg., 115/230, 25 lbs., almond ( new part no. 355008S) Legend: 1 Code: 075233S Unit Price: $0.00	$0.00
1	355339S	1A std. sq. flg., 115/230, 25 lbs., black Legend: 1 Code: 355339S Unit Price: $305.33	$305.33
1	355371S	3/4A std. sq. flg., black Legend: 1 Code: 355371S Unit Price: $269.20	$269.20
1	075232S	3/4A std. sq. flg. 4 Legend: 1 Code: 075232S Unit Price: $412.28	$412.28
2	354290	Hex hd. screw, 3/8-16, 4 req. 2 Legend: 2 Code: 354290 Unit Price: $7.28	$7.28
3	355666	Seal bracket thru-bolt, black 2 Legend: 3 Code: 355666 Unit Price: $110.09	$110.09
3A	356012	Seal plate, almond Legend: 3A Code: 356012 Unit Price: $103.36	$103.36
4	355619	O-ring, seal bracket Legend: 4 Code: 355619 Unit Price: $19.29	$19.29
5	355385	Motor support 48 frame 1 Legend: 5 Code: 355385 Unit Price: $17.34	$17.34
6	355613	Pump base Legend: 6 Code: 355613 Unit Price: $73.50	$73.50
7	354545S	Mechanical seal, 5/8 in., PS 200 Legend: 7 Code: 354545S Unit Price: $20.70	$20.70
8A	355074	Impeller 1F, 1-1/2A 2 Legend: 8A Code: 355074 Unit Price: $73.50	$73.50
8	355278	Impeller 1-1/2A Legend: 8 Code: 355278 Unit Price: $50.11	$50.11
8	355225	Impeller 2A Legend: 8 Code: 355225 Unit Price: $50.48	$50.48
8A	355043	Impeller 1/2F, 3/4A 2 Legend: 8A Code: 355043 Unit Price: $73.50	$73.50
8A	355067	Impeller 3/4F, 1A 2 Legend: 8A Code: 355067 Unit Price: $73.50	$73.50
8	355258	Impeller 3/4A Legend: 8 Code: 355258 Unit Price: $53.20	$53.20
8	355263	Impeller 1A Legend: 8 Code: 355263 Unit Price: $45.89	$45.89
9	355389	Screw, impeller locking Legend: 9 Code: 355389 Unit Price: $3.44	$3.44
10	355618	Diffuser, 1F, 1-1/2A Pinnacle 2 Legend: 10 Code: 355618 Unit Price: $85.60	$85.60
10	355617	Diffuser, 1/2F, 3/4A and 3/4F, 1A 2 Legend: 10 Code: 355617 Unit Price: $85.60	$85.60
11	355334	Screw, No.8-32 hex wsh. hd., 3 req. Legend: 11 Code: 355334 Unit Price: $4.28	$4.28
12	355030	Seal, diffuser Legend: 12 Code: 355030 Unit Price: $16.71	$16.71
13	355301	Lid, strainer pot, clear Legend: 13 Code: 355301 Unit Price: $57.43	$57.43
13	354112	Lid, chemical resistant, black Legend: 13 Code: 354112 Unit Price: $57.43	$57.43
14	350013	O-ring, lid Legend: 14 Code: 350013 Unit Price: $8.46	$8.46
15	355667	Basket, large Legend: 15 Code: 355667 Unit Price: $30.74	$30.74
16	356002	Pump housing, almond Legend: 16 Code: 356002 Unit Price: $300.93	$300.93
17	072184	Washer, 3/8 in. SS, 4 req. Legend: 17 Code: 072184 Unit Price: $4.28	$4.28
18	355621	Screw, 3/4, 16 x 2-1/4 hex hd., 4 req. Legend: 18 Code: 355621 Unit Price: $8.90	$8.90
19	192115	O-ring, drain plug, 2 req. Legend: 19 Code: 192115 Unit Price: $3.74	$3.74
20	154699	Drain plug, 2 req. Legend: 20 Code: 154699 Unit Price: $43.13	$43.13
