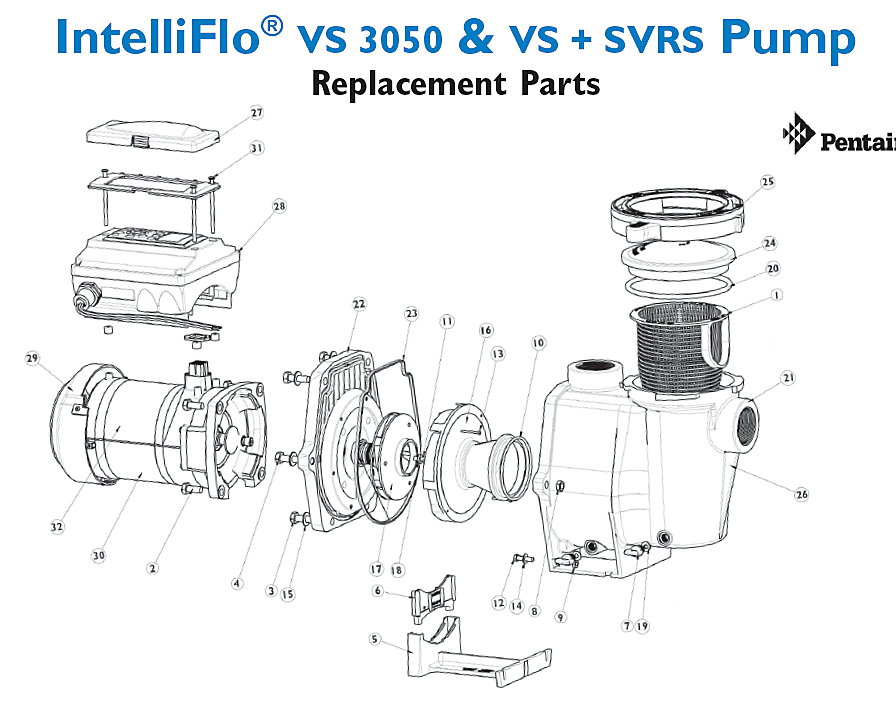

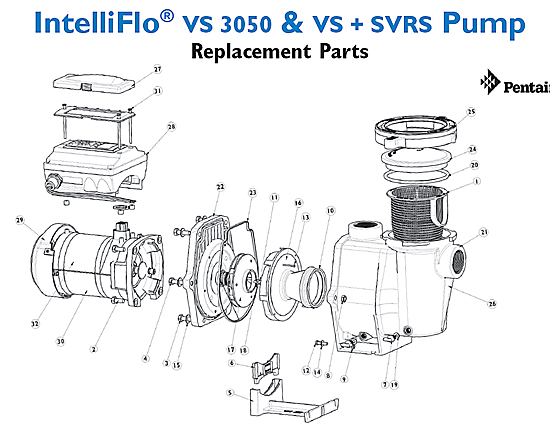

Intelliflo VF 3050 & VS+SVRS

CLICK HERE FOR LARGER IMAGE

Legend Image Code Name Unit Price Quantity Action Parts
350621 Junction Box Cover - Almond
Legend:
Code: 350621
Unit Price: $70.48
$70.48
350202 Whisperflo Seal plate with Ceramic Seals and Gasket
Legend:
Code: 350202
Unit Price: $145.00
$145.00
350122 50 ft. Communication Cable
Legend:
Code: 350122
Unit Price: $120.72
$120.72
0 356879Z KIT VS DRIVE ASY ALMD WITH KEYPAD
Legend: 0
Code: 356879Z
Unit Price: $949.00
$949.00
2 070429 Bolt hex HD, 2-56 x .875 S/S, 4 req.
Legend: 2
Code: 070429
Unit Price: $3.49
$3.49
3 070430 Bolt, 3/8-16 x 1-1/4 hex cap 18-8 S/S, 4 req.
Legend: 3
Code: 070430
Unit Price: $3.99
$3.99
4 070431 Bolt, 3/8-16 x 2 hex cap 18-8 S/S, 2 req.
Legend: 4
Code: 070431
Unit Price: $5.00
$5.00
5 070927 Foot WF, pump motor support, almond
Legend: 5
Code: 070927
Unit Price: $40.00
$40.00
6 070929 Foot insert WF pump, almond
Legend: 6
Code: 070929
Unit Price: $21.00
$21.00
7 071131 Plug drain WFE, almond, 2 req.
Legend: 7
Code: 071131
Unit Price: $6.74
$6.74
8 071403 Nut, 3/8-16 brass nickel plated, 2 req.
Legend: 8
Code: 071403
Unit Price: $1.00
$1.00
9 071406 Nut, 1/4-20 hex S/S, 2 req.
Legend: 9
Code: 071406
Unit Price: $2.99
$2.99
11 071652 Whisperflo Impeller Screw
Legend: 11
Code: 071652
Unit Price: $4.14
$4.14
12 071657 Screw, 1/4-20 x 1 in. hex cap 18-8 S/S, 2 req.
Legend: 12
Code: 071657
Unit Price: $2.99
$2.99
13 071660 Diffuser Screw set, 4-40 x 1-1/8 WFE sckt cap 18-8 S/S, 2 req.
Legend: 13
Code: 071660
Unit Price: $4.49
$4.49
14 072183 Washer, flat 1/4 x 5/8 20GA thick 18-8 S/S, 2 req.
Legend: 14
Code: 072183
Unit Price: $1.00
$1.00
15 072184 Washer, 3/8 ID x 7/8 OD .05 thick 18-8 S/S, 6 req.
Legend: 15
Code: 072184
Unit Price: $1.72
$1.72
16 072928 Diffuser assembly 12, black
Legend: 16
Code: 072928
Unit Price: $71.76
$71.76
17 073131 Impeller, IntelliFlo
Legend: 17
Code: 073131
Unit Price: $90.00
$90.00
18 175713 Rubber washer, WFE pump, 1 req..
Legend: 18
Code: 175713
Unit Price: $8.28
$8.28
19 192115 O-ring 112, .487 x .103 buna -N 70, 2 req.
Legend: 19
Code: 192115
Unit Price: $2.99
$2.99
20 350013 O-ring lid CH/WF 2-436, 1 req.
Legend: 20
Code: 350013
Unit Price: $6.77
$6.77
21 350015 Housing WFE, almond
Legend: 21
Code: 350015
Unit Price: $310.50
$310.50
23 357100 Black Gasket for Seal plate 1
Legend: 23
Code: 357100
Unit Price: $6.35
$6.35
23 357102 Almond Gasket for Seal plate 2
Legend: 23
Code: 357102
Unit Price: $8.27
$8.27
24 357156 Lid, Chemical Resistant
Legend: 24
Code: 357156
Unit Price: $48.31
$48.31
24 357151 Lid, see thru WF.
Legend: 24
Code: 357151
Unit Price: $38.64
$38.64
25 357199 Clamp, Cam & Ramp, plastic, almond (current)
Legend: 25
Code: 357199
Unit Price: $34.04
$34.04
27 350601 Control cover assy. kit, almond (contains cover assy., hardware/ gasket kit, instr.)
Legend: 27
Code: 350601
Unit Price: $247.02
$247.02
29 352401 Motor fan kit, almond (contains fan, shroud, hardware).
Legend: 29
Code: 352401
Unit Price: $103.15
$103.15
30 350305S Pentair Intelliflo Replacement Motor - All Models
Legend: 30
Code: 350305S
Unit Price: $725.00
$725.00
31 350612 Hardware/gasket assy. kit (contains 3 screws, 3 spacer caps and drive gasket)
Legend: 31
Code: 350612
Unit Price: $77.15
$77.15
32 070117 Power end IntelliFlo VS + SVRS (Contains items 2, 4, 10, 11, , 13, 15, 16,17,19,22,23,28,30
Legend: 32
Code: 070117
Unit Price: $1,345.50
$1,345.50
32 070114 Power end IntelliFlo VS 3050, almond (contains items: 2, 4, 10, 11, 13, 15, 16, 17, 19, 22, 23, 28, 30) 3
Legend: 32
Code: 070114
Unit Price: $1,345.50
$1,345.50
