Jandy MaxHP Series Pump

Select Manufacturer

Jandy

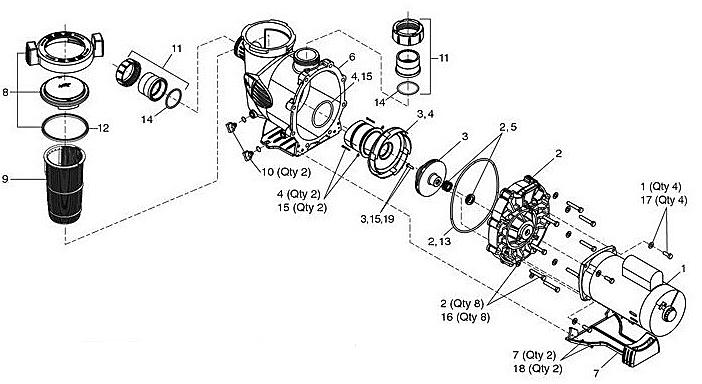

Jandy MaxHP (MHPM) Series Pump

Legend	Image	Code	Name	Unit Price	Quantity	Action	Parts
2		R0445200	Backplate, Carbon Mechanical Seal, Ceramic Mechanical Seal, O-Ring, Bolts, Washers Legend: 2 Code: R0445200 Unit Price: $191.63	$191.63
3		R0449502	Impeller/Diffuser, Screw w/ O-Ring, MHPM- 1HP Legend: 3 Code: R0449502 Unit Price: $55.96	$55.96
3		R0449504	Impeller/Diffuser, Screw w/ O-Ring, MHPM- 2HP Legend: 3 Code: R0449504 Unit Price: $51.82	$51.82
4		R0445400	Diffuser .5HP - 3HP Legend: 4 Code: R0445400 Unit Price: $55.45	$55.45
5		R0479400	Carbon Mechanical Seal & Ceramic Mechanical Seal Legend: 5 Code: R0479400 Unit Price: $25.00	$25.00
6		R0448701	Body, Pump, MHPM Legend: 6 Code: R0448701 Unit Price: $287.86	$287.86
7		R0445700	Motor Mounting Foot Assy & Screws Legend: 7 Code: R0445700 Unit Price: $45.30	$45.30
8		R0448800	Locking Ring, Lid, Lid Seal Legend: 8 Code: R0448800 Unit Price: $68.99	$68.99
9		R0448900	Filter Basket Legend: 9 Code: R0448900 Unit Price: $19.03	$19.03
10		R0446000	Drain Plug & O-Ring Legend: 10 Code: R0446000 Unit Price: $22.55	$22.55
11		R0449000	Tail Piece (2" x 2.5"), Coupling Nut, O-Ring Legend: 11 Code: R0449000 Unit Price: $63.88	$63.88
12		R0449100	Lid Seal w/ O-Ring Legend: 12 Code: R0449100 Unit Price: $18.59	$18.59
13		R0446300	Backplate O-Ring Legend: 13 Code: R0446300 Unit Price: $18.70	$18.70
14		R0449200	Tailpiece O-Ring Legend: 14 Code: R0449200 Unit Price: $20.84	$20.84
15		R0446500	Diffuser/Impeller Hardware Screw w/ O-Ring, Impeller Mounting Screw, Diffuser Mounting Washer, Diffuser Mounting O-Ring Legend: 15 Code: R0446500 Unit Price: $26.66	$26.66
16		R0446600	Backplate Hardware Bolts & Washers Legend: 16 Code: R0446600 Unit Price: $58.27	$58.27
17		R0446700	Motor Hardware Bolts & Washers Legend: 17 Code: R0446700 Unit Price: $25.57	$25.57
18		R0446800	Screws, Motor Mounting Foot Legend: 18 Code: R0446800 Unit Price: $21.70	$21.70
