Jandy PlusHP Series Pump

Select Manufacturer

Jandy

Jandy PlusHP Series Pump

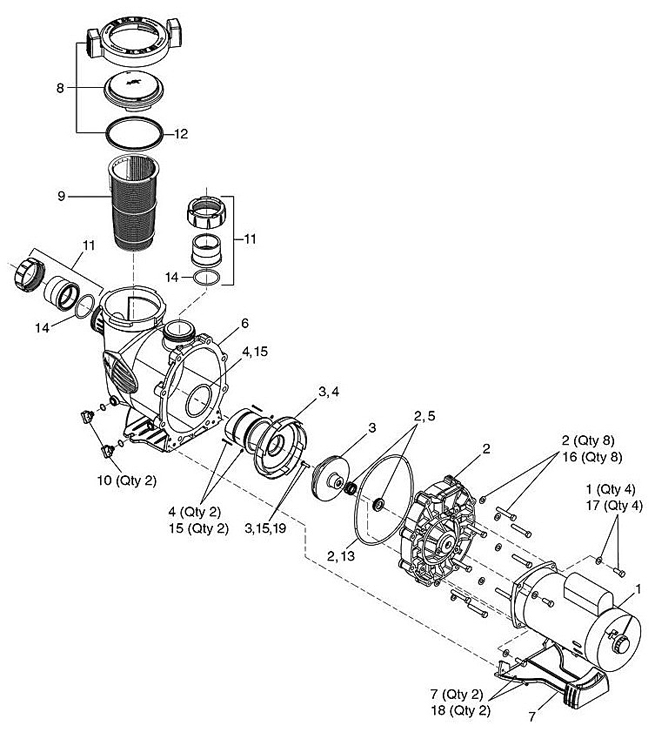

Legend	Image	Code	Name	Unit Price	Quantity	Action	Parts
1		R0445108	Motor, single-speed & Hardware, PHPF .5HP Legend: 1 Code: R0445108 Unit Price: $646.90	$646.90
1		R0445110	Motor, single-speed & Hardware, PHPF 1HP Legend: 1 Code: R0445110 Unit Price: $801.55	$801.55
4		R0445400	Diffuser .5HP - 3HP Legend: 4 Code: R0445400 Unit Price: $63.77	$63.77
5		R0479400	Mechanical Shaft Seal, New Style, Carbon & Ceramic Legend: 5 Code: R0479400 Unit Price: $28.75	$28.75
5		R0445500	Mechanical Shaft Seal, New & Old Style, Carbon & Ceramic Legend: 5 Code: R0445500 Unit Price: $46.15	$46.15
6		R0448700	Body, Pump, PHPF/PHPM Legend: 6 Code: R0448700 Unit Price: $396.67	$396.67
7		R0445700	Motor Mounting Foot Assembly PHPF/PHPM, Screws Legend: 7 Code: R0445700 Unit Price: $52.10	$52.10
8		R0448800	Locking Ring, Lid, Lid Seal Legend: 8 Code: R0448800 Unit Price: $79.34	$79.34
9		R0448900	Filter Basket Legend: 9 Code: R0448900 Unit Price: $21.88	$21.88
10		R0446000	Plug, Drain O-Ring Legend: 10 Code: R0446000 Unit Price: $25.93	$25.93
11		R0449000	Tail Piece (2" x 2 Legend: 11 Code: R0449000 Unit Price: $73.46	$73.46
12		R0449100	Lid Seal w/ O-Ring Legend: 12 Code: R0449100 Unit Price: $21.38	$21.38
13		R0446300	O-Ring, Backplate Legend: 13 Code: R0446300 Unit Price: $21.51	$21.51
14		R0449200	O-Ring, Tail Piece Legend: 14 Code: R0449200 Unit Price: $23.97	$23.97
15		R0446500	Diffuser/Impeller Hardware Screw w/ O-Ring, Self-sealing, Impeller Mounting Screw Diffuser Mounting, Washer Diffuser Mounting, O-Ring Diffuser Legend: 15 Code: R0446500 Unit Price: $30.66	$30.66
16		R0446600	Backplate Hardware Bolts & Washers Legend: 16 Code: R0446600 Unit Price: $67.01	$67.01
17		R0446700	Motor Hardware Bolts & Washers Legend: 17 Code: R0446700 Unit Price: $29.41	$29.41
18		R0446800	Screws, Motor Mounting Foot Legend: 18 Code: R0446800 Unit Price: $24.96	$24.96
19		R0515400	Screw w/ O-Ring, Self-sealing Legend: 19 Code: R0515400 Unit Price: $13.34	$13.34
