Legend Platinum Truck Series LL105PMT

Select Manufacturer

Pentair

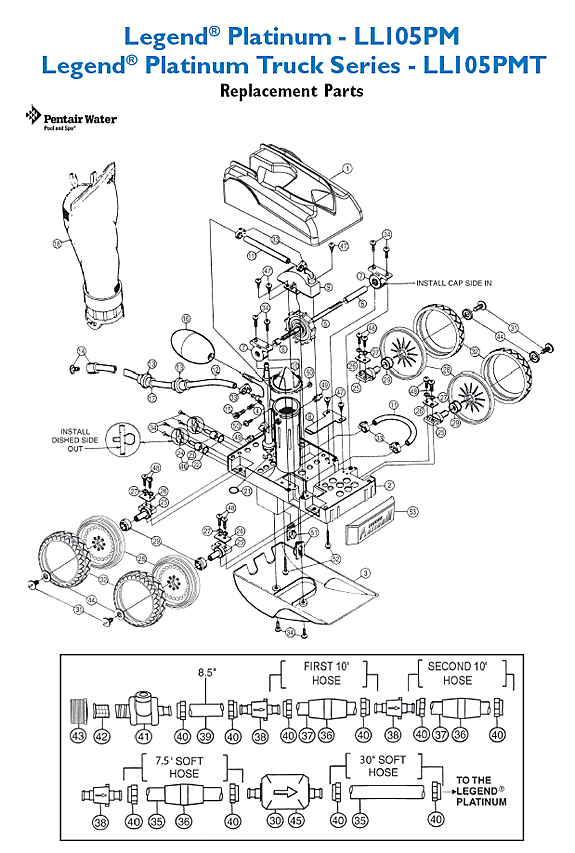

Click Here for Larger Image

Legend	Code	Name	Unit Price
	370017	Sweep Hose Scrubber Legend: Code: 370017 Unit Price: $4.63	$4.63
	JVP8	Pressure Stick w/o Gauge Legend: Code: JVP8 Unit Price: $42.24	$42.24
	JVPG	Pressure Gauge for JVP8 Legend: Code: JVPG Unit Price: $53.28	$53.28
	LL209	Complete Hose Kit,White Legend: Code: LL209 Unit Price: $362.07	$362.07
	LL209PMG	Complete Hose Kit, Grey Legend: Code: LL209PMG Unit Price: $661.28	$661.28
1*	LLU5PMTY	Platinum Truck Series,Top Cover only,Yellow Legend: 1* Code: LLU5PMTY Unit Price: $233.40	$233.40
1*	LLU5PMTR	Platinum Truck Series,Top Cover only, Red Legend: 1* Code: LLU5PMTR Unit Price: $233.40	$233.40
1*	LLU5PMTG	Platinum Truck Series,Top Cover only, Gray Legend: 1* Code: LLU5PMTG Unit Price: $233.40	$233.40
1*	LLU5PMTW	Platinum Truck Series,Top Cover only,White Legend: 1* Code: LLU5PMTW Unit Price: $233.40	$233.40
1	LLU5PM	Top Cover - Grey Legend: 1 Code: LLU5PM Unit Price: $143.24	$143.24
2	LLU145NPMG	Main Frame Legend: 2 Code: LLU145NPMG Unit Price: $1,150.33	$1,150.33
2	LLU145NPM	Main Frame - White Legend: 2 Code: LLU145NPM Unit Price: $1,150.33	$1,150.33
3	EU10N	Bottom Cover - White Legend: 3 Code: EU10N Unit Price: $80.53	$80.53
3	LLU10NG	Bottom Cover - Grey Legend: 3 Code: LLU10NG Unit Price: $80.53	$80.53
4*	LLU6	Feed Mast w/O-Ring - White Legend: 4* Code: LLU6 Unit Price: $58.00	$58.00
4*	LLU6G	Feed Mast w/O-Ring - Grey Legend: 4* Code: LLU6G Unit Price: $70.49	$70.49
5	EC86	Turbine Drive Shaft - Complete Legend: 5 Code: EC86 Unit Price: $45.27	$45.27
6	EC83	Turbine Spacers - Set, 1 long, 1 short Legend: 6 Code: EC83 Unit Price: $11.28	$11.28
7	EC80	Turbine Bearings Legend: 7 Code: EC80 Unit Price: $66.16	$66.16
8	EA40	Turbine Shaft Shield - White Legend: 8 Code: EA40 Unit Price: $37.31	$37.31
9	EC110	Turbine Cover w/Elbow - White Legend: 9 Code: EC110 Unit Price: $21.48	$21.48
11	LLC120G	Hose - 7 3/4” length - Grey Legend: 11 Code: LLC120G Unit Price: $11.28	$11.28
11	EC120	Hose - 7 3/4” length - White Legend: 11 Code: EC120 Unit Price: $8.23	$8.23
12*	LLB5G	Sweep Hose - Complete - Grey Legend: 12* Code: LLB5G Unit Price: $101.57	$101.57
12	EB5L	Sweep Hose - Complete - White Legend: 12 Code: EB5L Unit Price: $65.88	$65.88
13	EB10	Sweep Hose - Wear Ring Legend: 13 Code: EB10 Unit Price: $20.18	$20.18
14	LLB25PM	Sweep Hose - Jet w/Collar - Grey Legend: 14 Code: LLB25PM Unit Price: $36.05	$36.05
14	EB25	Sweep Hose - Jet w/Collar - White Legend: 14 Code: EB25 Unit Price: $16.29	$16.29
15	EB20	Sweep Hose - Adjustment Screw -White1 Legend: 15 Code: EB20 Unit Price: $13.25	$13.25
15	370198	Sweep Hose - Adjustment Screw - SS2 Legend: 15 Code: 370198 Unit Price: $12.46	$12.46
16	LLA20G	Ballast Float - Grey Legend: 16 Code: LLA20G Unit Price: $39.95	$39.95
17	EH07	Sweep Hose - Hose Sleeve - White Legend: 17 Code: EH07 Unit Price: $27.20	$27.20
17	LLH07PM	Sweep Hose - Hose Sleeve - Grey Legend: 17 Code: LLH07PM Unit Price: $21.40	$21.40
18	360002	Debris Bag with Snaplock Legend: 18 Code: 360002 Unit Price: $63.63	$63.63
18	360009	Debris Bag with Snaplock - Grey Legend: 18 Code: 360009 Unit Price: $63.68	$63.68
18	EU15	Coarse Mesh Bag - White Collar Legend: 18 Code: EU15 Unit Price: $62.73	$62.73
18	EU15G	Coarse Mesh Bag - Grey Collar Legend: 18 Code: EU15G Unit Price: $63.78	$63.78
21	EU7	O-Ring for Feed Mast Legend: 21 Code: EU7 Unit Price: $6.95	$6.95
22	E18	O-Ring for Thrust Jet Legend: 22 Code: E18 Unit Price: $11.88	$11.88
23	LLC130PM	Thrust Jets - White Legend: 23 Code: LLC130PM Unit Price: $20.48	$20.48
23	LLC130G	Thrust Jets - Grey Legend: 23 Code: LLC130G Unit Price: $45.79	$45.79
24	EC135	Thrust Jet Plates - White Legend: 24 Code: EC135 Unit Price: $29.92	$29.92
24	LLC135G	Thrust Jet Plates - Grey Legend: 24 Code: LLC135G Unit Price: $22.85	$22.85
25	EC65	Axle - Large Wheels Legend: 25 Code: EC65 Unit Price: $27.90	$27.90
26	EC70	Axle Plate Legend: 26 Code: EC70 Unit Price: $8.73	$8.73
27	EC45	Axle - Lock Washer Legend: 27 Code: EC45 Unit Price: $14.09	$14.09
28	LLC6PMG	Wheel w/out Bearings - Grey Legend: 28 Code: LLC6PMG Unit Price: $50.49	$50.49
28*	LLC6PM	Wheel w/out Bearings - White Legend: 28* Code: LLC6PM Unit Price: $50.49	$50.49
29	EC60	Wheel Bearings Legend: 29 Code: EC60 Unit Price: $36.51	$36.51
30*	LL10PM	Back-Up Valve - Grey Legend: 30* Code: LL10PM Unit Price: $160.20	$160.20
31	EC55	Wheel Screw - Plastic - White Legend: 31 Code: EC55 Unit Price: $20.11	$20.11
31	LLC55PM	Wheel Screw - Plastic - Grey Legend: 31 Code: LLC55PM Unit Price: $21.78	$21.78
32*	LLC1PM	Tire - Platinum - White Legend: 32* Code: LLC1PM Unit Price: $36.18	$36.18
32*	LLC1PMG	Tire - Platinum - Grey Legend: 32* Code: LLC1PMG Unit Price: $36.09	$36.09
33	EB15	Hose Clamp Legend: 33 Code: EB15 Unit Price: $12.08	$12.08
34	EC40	Screw Legend: 34 Code: EC40 Unit Price: $13.09	$13.09
35	ED50	Feed Hose - Clear soft - 7’-8” Legend: 35 Code: ED50 Unit Price: $53.09	$53.09
35*	LLD50PM	Feed Hose - Grey soft - 7’-8” Legend: 35* Code: LLD50PM Unit Price: $65.39	$65.39
36	ED10P	Float For Feed Hose - White Legend: 36 Code: ED10P Unit Price: $22.26	$22.26
36*	LLD10PM	Float For Feed Hose - Grey Legend: 36* Code: LLD10PM Unit Price: $40.65	$40.65
37	ED45	Feed Hose - 11’-2” - White Legend: 37 Code: ED45 Unit Price: $51.10	$51.10
37*	LLD45PM	Feed Hose - 11’-2” - Grey Legend: 37* Code: LLD45PM Unit Price: $48.10	$48.10
38*	LLD05PM	Swivel - Feed Hose - Grey Legend: 38* Code: LLD05PM Unit Price: $41.08	$41.08
39	LLU1PM	Adapter Hose 8-1/2” - Grey Legend: 39 Code: LLU1PM Unit Price: $19.35	$19.35
39	LLU1	Adapter Hose 8-1/2” - White Legend: 39 Code: LLU1 Unit Price: $29.92	$29.92
40*	LLD15PM	Mender Nut - plastic - Grey Legend: 40* Code: LLD15PM Unit Price: $27.96	$27.96
40	ED15	Mender Nut - plastic - White Legend: 40 Code: ED15 Unit Price: $36.74	$36.74
41	EW22	Wall Fitting - White Legend: 41 Code: EW22 Unit Price: $45.19	$45.19
41	LL25PM	Pressure Relief Valve - Grey Legend: 41 Code: LL25PM Unit Price: $27.38	$27.38
41	E25	Pressure Relief Valve - White Legend: 41 Code: E25 Unit Price: $23.00	$23.00
41*	LLW22PM	Wall Fitting - Grey Legend: 41* Code: LLW22PM Unit Price: $62.48	$62.48
42	E24	Screen - Wall Fitting Legend: 42 Code: E24 Unit Price: $19.94	$19.94
43	LL23PM	Quick Disconnect Adapter - Grey Legend: 43 Code: LL23PM Unit Price: $19.13	$19.13
43	E23	Quick Disconnect Adapter - White Legend: 43 Code: E23 Unit Price: $26.69	$26.69
44	EC64	Wheel - Plastic Washer Legend: 44 Code: EC64 Unit Price: $18.97	$18.97
45	EG15	Gears - for Back-Up Valve Legend: 45 Code: EG15 Unit Price: $100.38	$100.38
46	LLC131G	Thrust Jet Repair Kit includes: (Grey) E18, EC130G, LLC135G Legend: 46 Code: LLC131G Unit Price: $34.61	$34.61
46	EC131	Thrust Jet Repair Kit includes: (White) E18, EC130, EC135 Legend: 46 Code: EC131 Unit Price: $20.94	$20.94
47	EA30	Screw for EA40 or LLA40G and EC110 or LLC110PM Legend: 47 Code: EA30 Unit Price: $9.62	$9.62
48	EU76	Axle Bolt Legend: 48 Code: EU76 Unit Price: $13.87	$13.87
49	EU147	Snap Fit Vac Tube Posts - White Legend: 49 Code: EU147 Unit Price: $19.10	$19.10
49	LLU147G	Snap Fit Vac Tube Posts - Grey Legend: 49 Code: LLU147G Unit Price: $20.48	$20.48
50	EU79	Nut & Bolt - Feed Mast to Vac Tube Legend: 50 Code: EU79 Unit Price: $31.72	$31.72
51	LLU8	Venturi Jet - White Legend: 51 Code: LLU8 Unit Price: $18.86	$18.86
51	LLU8G	Venturi Jet - Grey Legend: 51 Code: LLU8G Unit Price: $23.08	$23.08
52	EU80	Screw - Cover to Frame Legend: 52 Code: EU80 Unit Price: $22.85	$22.85
53	LLU81PM	Front Bumper - White Legend: 53 Code: LLU81PM Unit Price: $33.70	$33.70
53	LLU81PMG	Front Bumper - Grey Legend: 53 Code: LLU81PMG Unit Price: $40.19	$40.19
