Legend II- LX 2000

Select Manufacturer

Pentair

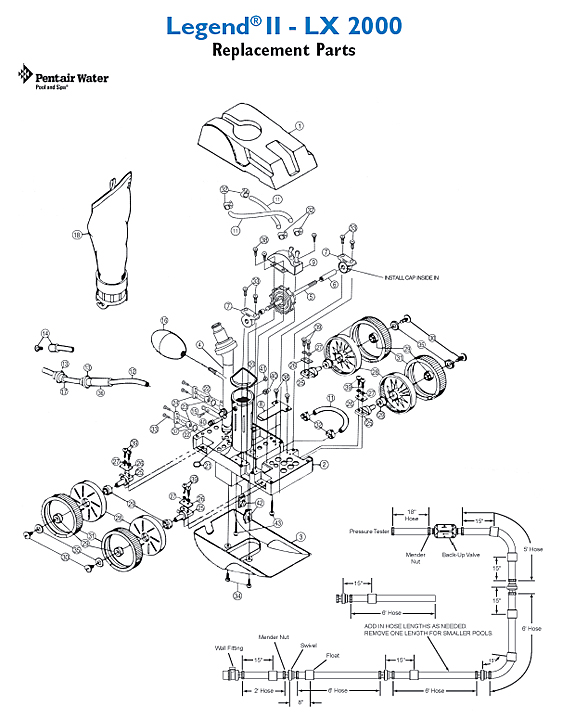

Click Here for Large Image

Legend	Code	Name	Unit Price
H2*	LX10	Back Up Valve - Low Pressure Legend: H2* Code: LX10 Unit Price: $121.00	$121.00
H2	LX11	Back Up Valve - Housing Legend: H2 Code: LX11 Unit Price: $64.14	$64.14
H2	E12	Back Up Valve - Top Cover Legend: H2 Code: E12 Unit Price: $39.78	$39.78
inside H2	E13	Back Up Valve - Housing O-Ring Legend: inside H2 Code: E13 Unit Price: $6.95	$6.95
inside H2	E14	Back Up Valve - O-Ring Gear Assembly Legend: inside H2 Code: E14 Unit Price: $6.95	$6.95
H3	LXD10	Feed Hose Float Legend: H3 Code: LXD10 Unit Price: $19.81	$19.81
H5	LX17	Feed Hose - 6 ft. Section Legend: H5 Code: LX17 Unit Price: $35.15	$35.15
H4	LX18	Feed Hose - 2 ft. Section Legend: H4 Code: LX18 Unit Price: $22.42	$22.42
H6	LX20	Feed Hose Mender w/O-Ring #0252 Legend: H6 Code: LX20 Unit Price: $28.76	$28.76
H7*	LX19	Feed Hose Swivel Legend: H7* Code: LX19 Unit Price: $39.28	$39.28
H8*	LXW22	Wall Fitting - Complete Legend: H8* Code: LXW22 Unit Price: $42.46	$42.46
H8	E21	Wall Fitting O-ring Legend: H8 Code: E21 Unit Price: $16.72	$16.72
H8	E23	Wall Fitting Adapter Legend: H8 Code: E23 Unit Price: $26.69	$26.69
inside H8	E24	Wall Fitting Screen Legend: inside H8 Code: E24 Unit Price: $19.94	$19.94
inside H8	LX25	Wall Fitting - Pressure Relief Valve Legend: inside H8 Code: LX25 Unit Price: $23.08	$23.08
H9	LX26	Pressure Tester Legend: H9 Code: LX26 Unit Price: $40.13	$40.13
	LX209	Kit includes Legend: Code: LX209 Unit Price: $538.69	$538.69
	LX26	Pressure Tester Legend: Code: LX26 Unit Price: $40.13	$40.13
	LX18	2’ Hose Section Legend: Code: LX18 Unit Price: $22.42	$22.42
	LX20	Mender Nuts Legend: Code: LX20 Unit Price: $28.76	$28.76
	LX19	Swivels Legend: Code: LX19 Unit Price: $39.28	$39.28
	LX17	6’ Hose Section Legend: Code: LX17 Unit Price: $35.15	$35.15
	LXD10	Hose Floats Legend: Code: LXD10 Unit Price: $19.81	$19.81
	LX10	Back-Up Valve Legend: Code: LX10 Unit Price: $121.00	$121.00
	LXW22	Wall Fitting - Complete Legend: Code: LXW22 Unit Price: $42.46	$42.46
	LX205	Kit includes Legend: Code: LX205 Unit Price: $396.37	$396.37
	EC80	Turbine Bearings - 2-PK Legend: Code: EC80 Unit Price: $66.16	$66.16
	EC60	Wheel Bearings - 2-PK Legend: Code: EC60 Unit Price: $36.51	$36.51
	EC86	Turbine Shaft - Complete Legend: Code: EC86 Unit Price: $45.27	$45.27
	EB5L	Sweep Tail - Complete Legend: Code: EB5L Unit Price: $65.88	$65.88
	EC6L	Wheel (Large) Legend: Code: EC6L Unit Price: $29.43	$29.43
1	LXU5G	Top Cover - Gray Legend: 1 Code: LXU5G Unit Price: $101.41	$101.41
3	EU10N	Bottom Cover Legend: 3 Code: EU10N Unit Price: $80.53	$80.53
4*	LXU6	Feed Mast w/0-Ring & Swivel Legend: 4* Code: LXU6 Unit Price: $62.30	$62.30
5	EC86	Turbine Drive Shaft - Complete Legend: 5 Code: EC86 Unit Price: $45.27	$45.27
6	EC83	Turbine Spacers - Set, 1 long, 1 short Legend: 6 Code: EC83 Unit Price: $11.28	$11.28
7	EC80	Turbine Bearings Legend: 7 Code: EC80 Unit Price: $66.16	$66.16
8	EA40	Turbine Shaft Shield Legend: 8 Code: EA40 Unit Price: $37.31	$37.31
9	LXC110	Turbine Cover w/Elbows Legend: 9 Code: LXC110 Unit Price: $32.45	$32.45
11	EC120	Hose - 7 3/4” Legend: 11 Code: EC120 Unit Price: $8.23	$8.23
12	EB5L	Sweep Hose - Complete Legend: 12 Code: EB5L Unit Price: $65.88	$65.88
13	EB10	Sweep Hose - Wear Ring Legend: 13 Code: EB10 Unit Price: $20.18	$20.18
14	EB25	Sweep Hose - Jet w/Collar Legend: 14 Code: EB25 Unit Price: $16.29	$16.29
15	370198	Sweep Hose - Adjustment Screw - SS2 Legend: 15 Code: 370198 Unit Price: $12.46	$12.46
15	EB20	Sweep Hose - Adjustment Screw -White1 Legend: 15 Code: EB20 Unit Price: $13.25	$13.25
17	EH07	Sweep Hose - Hose Sleeve Legend: 17 Code: EH07 Unit Price: $27.20	$27.20
18	EU15	Coarse Mesh Bag (Optional) Legend: 18 Code: EU15 Unit Price: $62.73	$62.73
18	360002	Debris Bag with Snaplock Legend: 18 Code: 360002 Unit Price: $63.63	$63.63
21	EU7	O-Ring for Feed Mast Legend: 21 Code: EU7 Unit Price: $6.95	$6.95
22	E18	O-Ring for Thrust Jet Legend: 22 Code: E18 Unit Price: $11.88	$11.88
23	EC130	Thrust Jet Legend: 23 Code: EC130 Unit Price: $20.31	$20.31
24	EC135	Thrust Jet - Plate Legend: 24 Code: EC135 Unit Price: $29.92	$29.92
25	EC65	Axle - Large Wheels Legend: 25 Code: EC65 Unit Price: $27.90	$27.90
26	EC70	Axle Plate Legend: 26 Code: EC70 Unit Price: $8.73	$8.73
27	EC45	Axle - Lock Washer Legend: 27 Code: EC45 Unit Price: $14.09	$14.09
28*	EC6L	Wheel w/out Bearings Legend: 28* Code: EC6L Unit Price: $29.43	$29.43
29	EC60	Wheel Bearings Only Legend: 29 Code: EC60 Unit Price: $36.51	$36.51
30	EC55	Wheel Screw - Plastic Legend: 30 Code: EC55 Unit Price: $20.11	$20.11
31*	LXC1	Tire - Legend II Legend: 31* Code: LXC1 Unit Price: $20.58	$20.58
32	EB15	Hose Clamp Legend: 32 Code: EB15 Unit Price: $12.08	$12.08
33	EC40	Screw for Turbine Bearings, Thrust Jet Legend: 33 Code: EC40 Unit Price: $13.09	$13.09
34	EC40	Screw for Bottom Cover Legend: 34 Code: EC40 Unit Price: $13.09	$13.09
35	EC64	Wheel - Plastic Washer Legend: 35 Code: EC64 Unit Price: $18.97	$18.97
36	EH09C	Sweep Hose Weight (optional) Legend: 36 Code: EH09C Unit Price: $28.82	$28.82
37	EC131	Thrust Jet Repair Kit, includes: E18, EC130, EC135 Legend: 37 Code: EC131 Unit Price: $20.94	$20.94
38	EA30	Screw for LXC110 Legend: 38 Code: EA30 Unit Price: $9.62	$9.62
39	EU76	Axle Bolt Legend: 39 Code: EU76 Unit Price: $13.87	$13.87
40	EU147	Snap Fit Vac Tube Posts Legend: 40 Code: EU147 Unit Price: $19.10	$19.10
41	EU79	Nut & Bolt - Feed Mast to Vac Tube Legend: 41 Code: EU79 Unit Price: $31.72	$31.72
42	LXU8	Venturi Jet Legend: 42 Code: LXU8 Unit Price: $38.02	$38.02
43	EU80	Screw - Cover to Frame Legend: 43 Code: EU80 Unit Price: $22.85	$22.85
