Legend Cleaner LL505/LL505GG

Select Manufacturer

Pentair

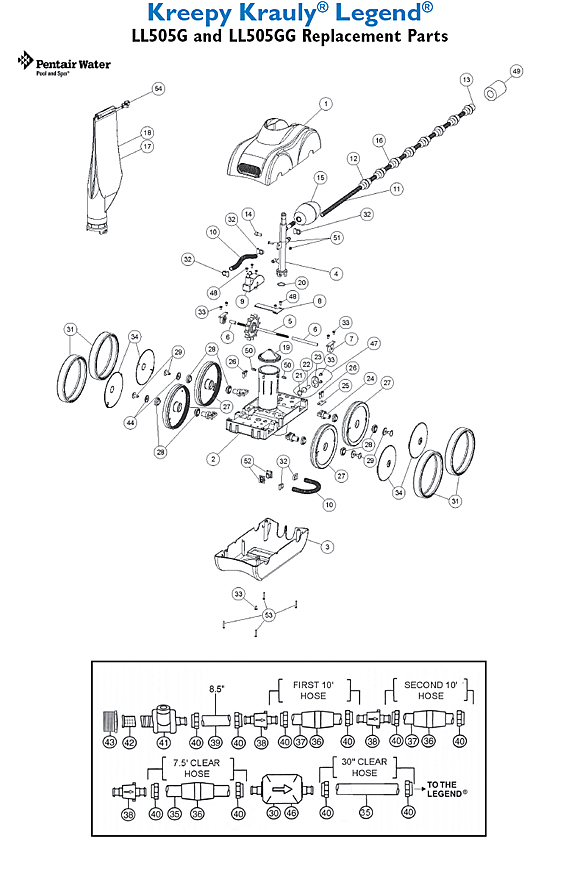

Click Here For Large Image

Legend	Code	Name	Unit Price
1	360003	Top Cover Legend: 1 Code: 360003 Unit Price: $130.24	$130.24
2	LLU145N	Main Frame Legend: 2 Code: LLU145N Unit Price: $1,794.42	$1,794.42
2	360010	Main Frame – Grey Legend: 2 Code: 360010 Unit Price: $1,414.85	$1,414.85
3	360004	Bottom Cover Legend: 3 Code: 360004 Unit Price: $95.24	$95.24
3	360011	Bottom Cover – Grey Legend: 3 Code: 360011 Unit Price: $95.24	$95.24
4	LLU6	Feed Mast w/O-Ring – White Legend: 4 Code: LLU6 Unit Price: $71.32	$71.32
4	LLU6G	Feed Mast w/O-Ring – Grey Legend: 4 Code: LLU6G Unit Price: $86.71	$86.71
5	EC86	Turbine Drive Shaft – Complete Legend: 5 Code: EC86 Unit Price: $83.14	$83.14
6	EC83	Turbine Spacers Legend: 6 Code: EC83 Unit Price: $13.86	$13.86
7	EC80	Turbine Bearings Legend: 7 Code: EC80 Unit Price: $61.03	$61.03
8	EA40	Turbine Shaft Shield Legend: 8 Code: EA40 Unit Price: $45.88	$45.88
9	EC110	Turbine Cover w/Elbows Legend: 9 Code: EC110 Unit Price: $26.39	$26.39
10	EC120	Turbine/Venturi Hose – 7¾" length Legend: 10 Code: EC120 Unit Price: $10.06	$10.06
10	LLC120G	Turbine/Venturi Hose – 7¾" length – Grey Legend: 10 Code: LLC120G Unit Price: $13.86	$13.86
11	EB5L	Sweep Hose – Complete Legend: 11 Code: EB5L Unit Price: $60.79	$60.79
11	LLB5G	Sweep Hose – Complete – Grey Legend: 11 Code: LLB5G Unit Price: $128.49	$128.49
12	EB10	Sweep Hose – Wear Ring Legend: 12 Code: EB10 Unit Price: $24.82	$24.82
13	EB25	Sweep Hose – Jet w/Collar Legend: 13 Code: EB25 Unit Price: $20.00	$20.00
13	LLB25PM	Sweep Hose – Jet w/Collar – Grey Legend: 13 Code: LLB25PM Unit Price: $44.35	$44.35
14	370198	Sweep Hose – Adjustment Screw Legend: 14 Code: 370198 Unit Price: $15.28	$15.28
15	LLA20G	Ballast Float – Grey Legend: 15 Code: LLA20G Unit Price: $49.16	$49.16
16	EH07	Sweep Hose – Hose Sleeve Legend: 16 Code: EH07 Unit Price: $29.07	$29.07
16	LLH07PM	Sweep Hose – Hose Sleeve – Grey Legend: 16 Code: LLH07PM Unit Price: $26.30	$26.30
17	EU15	Coarse Mesh Bag – (Optional - not shown) Legend: 17 Code: EU15 Unit Price: $77.14	$77.14
17	EU15G	Coarse Mesh Bag – Grey Collar – (Optional - not shown) Legend: 17 Code: EU15G Unit Price: $78.46	$78.46
18	360002	Fine Mesh Bag – Mechanical Lock Legend: 18 Code: 360002 Unit Price: $78.31	$78.31
18	360009	Fine Mesh Bag – Grey – Mechanical Lock Legend: 18 Code: 360009 Unit Price: $78.31	$78.31
20	EU7	O-Ring for Feed Mast Legend: 20 Code: EU7 Unit Price: $8.53	$8.53
21	E18	O-Ring for Thrust Jet Legend: 21 Code: E18 Unit Price: $14.62	$14.62
22	EC130	Thrust Jet Legend: 22 Code: EC130 Unit Price: $24.99	$24.99
23	EC135	Thrust Jet – Plate Legend: 23 Code: EC135 Unit Price: $36.75	$36.75
23	LLC135G	Thrust Jet – Plate – Grey Legend: 23 Code: LLC135G Unit Price: $28.15	$28.15
24	EC65	Axle – Large Wheels Legend: 24 Code: EC65 Unit Price: $34.27	$34.27
25	EC70	Axle Plate Legend: 25 Code: EC70 Unit Price: $10.68	$10.68
26	370258Z	Axle Screw w/Lock Washer Legend: 26 Code: 370258Z Unit Price: $29.20	$29.20
27	360006	Wheel w/Out Bearings Legend: 27 Code: 360006 Unit Price: $35.50	$35.50
28	EC60	Wheel Bearings – Only Legend: 28 Code: EC60 Unit Price: $44.92	$44.92
29	EC55	Wheel Screw Plastic Legend: 29 Code: EC55 Unit Price: $24.73	$24.73
29	LLC55PM	Wheel Screw Plastic – Grey Legend: 29 Code: LLC55PM Unit Price: $26.76	$26.76
30	LL10PM	Back-up Valve – Grey Legend: 30 Code: LL10PM Unit Price: $197.07	$197.07
31	360007	Wheel – Rubber Tire Legend: 31 Code: 360007 Unit Price: $25.41	$25.41
31	360012	Wheel – Grey Tire Legend: 31 Code: 360012 Unit Price: $25.39	$25.39
32	EB15	Hose Clamp Legend: 32 Code: EB15 Unit Price: $14.85	$14.85
33	EC40	Screw Legend: 33 Code: EC40 Unit Price: $16.13	$16.13
34	360005	Hub Cap Legend: 34 Code: 360005 Unit Price: $27.18	$27.18
34	360013	Hub Cap – Grey Legend: 34 Code: 360013 Unit Price: $27.18	$27.18
