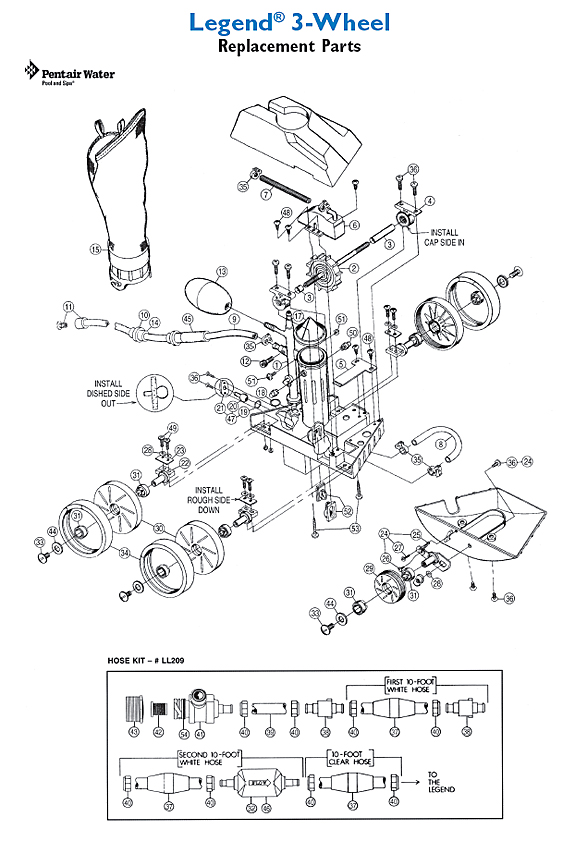

Legend 3-Wheel

Select Manufacturer

Pentair

Click here for Large Image

Legend	Code	Name	Unit Price
	LL205	Kit includes Legend: Code: LL205 Unit Price: $370.19	$370.19
	EB5L	Sweep Tail - Complete Legend: Code: EB5L Unit Price: $44.49	$44.49
	EC6L	Wheel - Large Legend: Code: EC6L Unit Price: $26.49	$26.49
	EC16	Wheel - Small Legend: Code: EC16 Unit Price: $38.74	$38.74
	EC60	Bearings - 2-PK Legend: Code: EC60 Unit Price: $32.87	$32.87
	EC80	Turbine Bearings - 2-PK Legend: Code: EC80 Unit Price: $44.67	$44.67
	EC86	Turbine Shaft - Complete Legend: Code: EC86 Unit Price: $60.85	$60.85
	EC10	Tires - Non-Ribbed Legend: Code: EC10 Unit Price: $28.45	$28.45
	EU16	Fine Mesh Bag Legend: Code: EU16 Unit Price: $57.32	$57.32
	LL209	Kit includes Legend: Code: LL209 Unit Price: $325.96	$325.96
	D45	White Feed Hose 10” Legend: Code: D45 Unit Price: $60.73	$60.73
	ED10P	Floats Legend: Code: ED10P Unit Price: $20.04	$20.04
	LLU1	Adaptor Hose - White 8½” Legend: Code: LLU1 Unit Price: $26.90	$26.90
	ED15	Mender Nuts Legend: Code: ED15 Unit Price: $33.06	$33.06
	EW22	Wall Fitting - Complete Legend: Code: EW22 Unit Price: $60.71	$60.71
	EB10	Wear Ring Legend: Code: EB10 Unit Price: $18.17	$18.17
1	LLU6	FEED MAST W/ O-RING Legend: 1 Code: LLU6 Unit Price: $52.19	$52.19
2	EC86	Turbine Drive Shaft - Complete Legend: 2 Code: EC86 Unit Price: $60.85	$60.85
3	EC83	Turbine Spacers - Set, 1 long, 1 short Legend: 3 Code: EC83 Unit Price: $10.15	$10.15
4	EC80	Turbine Bearings Legend: 4 Code: EC80 Unit Price: $44.67	$44.67
5	EA40	Turbine Shaft Shield Legend: 5 Code: EA40 Unit Price: $33.58	$33.58
6	EC110	Turbine Cover w/Elbow Legend: 6 Code: EC110 Unit Price: $19.32	$19.32
7	EC120	Turbine Cover Hose - 7 3/4” length Legend: 7 Code: EC120 Unit Price: $7.36	$7.36
8	EC120	JET HOSE 73/4 LENGTH Legend: 8 Code: EC120 Unit Price: $7.36	$7.36
9	EB5L	SWEEP HOSE COMPLETE Legend: 9 Code: EB5L Unit Price: $44.49	$44.49
10	EB10	Sweep Hose - Wear Ring Legend: 10 Code: EB10 Unit Price: $18.17	$18.17
11	EB25	Sweep Hose - Jet w/Collar Legend: 11 Code: EB25 Unit Price: $14.64	$14.64
12	EB20	Sweep Hose - Adjustment Screw - White1 Legend: 12 Code: EB20 Unit Price: $11.94	$11.94
12	370198	Sweep Hose - Adjustment Screw - SS2 Legend: 12 Code: 370198 Unit Price: $11.18	$11.18
14	EH07	Sweep Hose - Hose Sleeve Legend: 14 Code: EH07 Unit Price: $21.27	$21.27
15	EU15	Coarse Mesh Bag (Optional) Legend: 15 Code: EU15 Unit Price: $56.46	$56.46
15	EU16	Fine Mesh Bag Legend: 15 Code: EU16 Unit Price: $57.32	$57.32
18	EU7	O-Ring for Feed Mast Legend: 18 Code: EU7 Unit Price: $6.24	$6.24
19	E18	O-Ring for Thrust Jet Legend: 19 Code: E18 Unit Price: $10.70	$10.70
20	EC130	Thrust Jet - Light Gray Legend: 20 Code: EC130 Unit Price: $18.30	$18.30
21	EC135	Thrust Jet - Plate Legend: 21 Code: EC135 Unit Price: $26.90	$26.90
22	EC65	Axle - Large Wheels Legend: 22 Code: EC65 Unit Price: $25.08	$25.08
23	EC70	Axle Plate Legend: 23 Code: EC70 Unit Price: $7.82	$7.82
25	EC25	Spring - Swing Axle Legend: 25 Code: EC25 Unit Price: $10.70	$10.70
26	EC30	Screw For Spring To Swing Axle Legend: 26 Code: EC30 Unit Price: $8.67	$8.67
27	EC32	Screw For Spring To Bottom Cover Legend: 27 Code: EC32 Unit Price: $8.67	$8.67
28	EC45	Lock Washer For LLC36, EC70 Legend: 28 Code: EC45 Unit Price: $12.69	$12.69
29	EC16	Wheel - Small For Swing Axle Legend: 29 Code: EC16 Unit Price: $38.74	$38.74
30	EC6L	Wheel w/out Bearings Legend: 30 Code: EC6L Unit Price: $26.49	$26.49
31	EC60	Wheel Bearings Only Legend: 31 Code: EC60 Unit Price: $32.87	$32.87
33	EC55	Wheel Screw - Plastic Legend: 33 Code: EC55 Unit Price: $18.10	$18.10
34	EC10	Wheel - Rubber Tire (Non-ribbed) Legend: 34 Code: EC10 Unit Price: $28.45	$28.45
35	EB15	Hose Clamp Legend: 35 Code: EB15 Unit Price: $10.87	$10.87
36	EC40	Screw Legend: 36 Code: EC40 Unit Price: $11.81	$11.81
37	ED10P	Float - Feed Hose Legend: 37 Code: ED10P Unit Price: $20.04	$20.04
39	LLU1	Adapter Hose - White - 8-½” Legend: 39 Code: LLU1 Unit Price: $26.90	$26.90
40	ED15	Mender Nut - plastic - feed hose Legend: 40 Code: ED15 Unit Price: $33.06	$33.06
41	EW22	Wall Fitting - Complete Legend: 41 Code: EW22 Unit Price: $60.71	$60.71
42	E24	Screen - Wall Fitting Legend: 42 Code: E24 Unit Price: $17.95	$17.95
43	E23	Quick Disconnect Adapter Legend: 43 Code: E23 Unit Price: $20.94	$20.94
44	EC64	Wheel - Plastic Washer Legend: 44 Code: EC64 Unit Price: $29.51	$29.51
45	EH09C	Sweep Hose Weight Legend: 45 Code: EH09C Unit Price: $25.97	$25.97
46	EG15	Gears - for Back-Up Valve Legend: 46 Code: EG15 Unit Price: $90.37	$90.37
47	EC131	Thrust Jet Repair Kit includes: E18, EC130, EC135 Legend: 47 Code: EC131 Unit Price: $18.86	$18.86
48	EA30	Screw for EA40 and EC110 Legend: 48 Code: EA30 Unit Price: $8.67	$8.67
48	EA30	Screw for EA40 and EC110 Legend: 48 Code: EA30 Unit Price: $8.67	$8.67
49	EU76	Axle Bolt Legend: 49 Code: EU76 Unit Price: $12.45	$12.45
50	EU147	Snap Fit Vac Tube Posts Legend: 50 Code: EU147 Unit Price: $29.67	$29.67
51	EU79	Nut & Bolt - Feed Mast to Vac Tube Legend: 51 Code: EU79 Unit Price: $28.55	$28.55
52	LLU8	Venturi Jet Legend: 52 Code: LLU8 Unit Price: $21.23	$21.23
