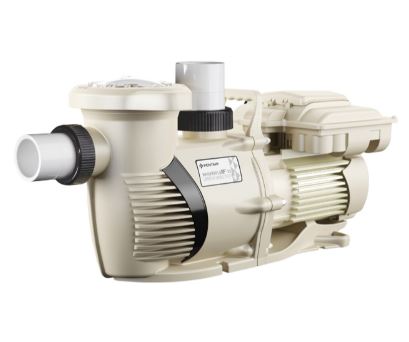

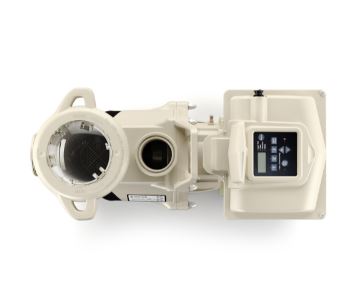

WhisperFLoXF VS Pump 5 HP Variable Speed
WhisperFLoXF VS Pump 5 HP Variable Speed

WhisperFLoXF VS Pump 5 HP Variable Speed

0 reviews / Write a review

  • Available in Store. Call 909-595-5744 or email sales@americanbestpoolsupply.com for more details

PMP WHISPERFLO XF VS PMP WHISPERFLO XF VS

  • Product Code: 022035

  • Description
  • Warranty
  • User manual
  • Reviews (0)
PRODUCT CODE 022035
TYPE VS Variable Speed
Cycle 50/60Hz
Phase Single phase / 3 phase


The WhisperFloXF VS Commercial Pump is the first five-horsepower variable-speed pool pump that runs on single-hase or three-phase power. It’s an economical, combined motor/drive solution for both HMAC (hotel, motel, apartment, condominium) or large residential installations. The WhisperFloXF VS Commercial Pump provides ophisticated, energy saving pump technology without the high costs typically associated with independent ump/external drive setups.

STANDARD FEATURES
• Integrated 5HP motor/drive; no expensive external drive required.
• Versatile power input capability; runs off a wide range of single- or
three-phase power.

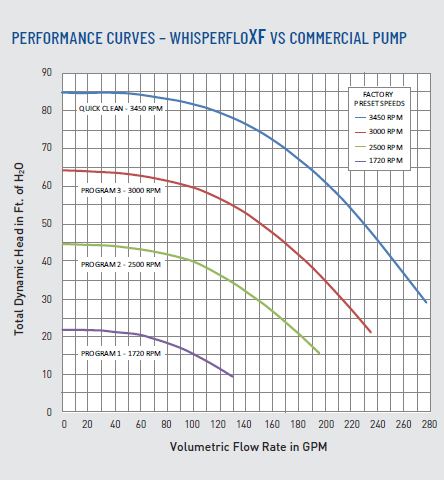

• Speed or flow control for maximum efficiency and pool performance*.
• External control capability through automation systems or relays.
• Intuitive programming and operation.
• Meets commercial codes and agency requirements.

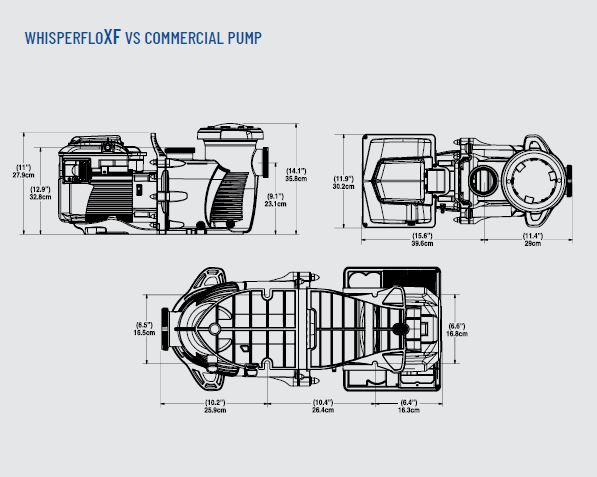

Pump Body
Volute type back pull out design for ease of working on impeller,
diffuser and seal.
• Port Size
- Inlet (suction): 2.5" union can be adapted to 3 inches.
- Outlet (discharge): 2.5" union can be adapted to 3 inches.
• Material
- 30% glass filled polypropylene materials.
- 1⁄4" NPT thermoplastic drain plug of thumbscrew
(no tool required) design on the strainer for winterizing.
• Impeller
- Noryl glass filled PPO resin enclosed design for corrosion
prevention and maximum flow efficiency.
- Threaded brass with stainless steel locking screws.
• Diffuser
- Glass filled noryl thermoplastic material with bronze impeller
wear ring.
- Hydraulic isolator design for maximum efficiency.
• Seal plate
- Fiberglass reinforced modified PPE thermoplastic material.
• Mechanical Seal
- Ceramic and carbon seal.
- Stainless steel and EPDM materials
• Base
- Fiberglass reinforced modified PPE thermoplastic with
slotted holes for easy mounting.
• Gaskets
- Buna N rubber compression resistant.
• Bolts, Nuts, and Washers
- Stainless steel and brass with nickel plating.
• Corrosion Prevention
- All thermoplastic pump body for maximum hydraulic
performance, noise reduction and corrosion prevention.
Hair and Lint Strainer
• Basket
- HDPE (polyethylene) basket colored white for easy debris removal.
- Securely positioned below the suction inlet of the trap, with
access for inspection and cleaning through the removable lid.
• Lid
- Clear polycarbonate thermoplastic lid for easy view into the
basket area.
• Lid Locking Ring
- Cam and Ramp™ Lid and Locking Ring allow for quick and easy
access to the basket.
- O-ring seal
Motor
• Frame and Type
- NEMA Rated 56 Frame totally enclosed fan-cooled construction.
- Variable speed induction motor.
• Shaft
- 300 series stainless steel construction.
• Thermal Overload Protection
- Thermal overload protection provided by the integral
motor control.
• Sealed Bearings
- Lubricated, double sealed, stainless steel, single row
ball bearings.
Electrical
- 208-230/277-460V single-phase.
- 208-460V three-phase.
- 50/60Hz.
- WEF 5.0 THP 5.0.
- Single part number to cover all voltage ranges.
Pump Maximum Thermal Limits
- Ambient air temperature: 122˚ F (50˚ C).
- Liquid temperature: 104˚ F (40˚ C).










Required pool profession / licensed to install this pump and register the warranty with Pentair.
Brochure (click here)

O
wner's Manual / Installation (click here)
