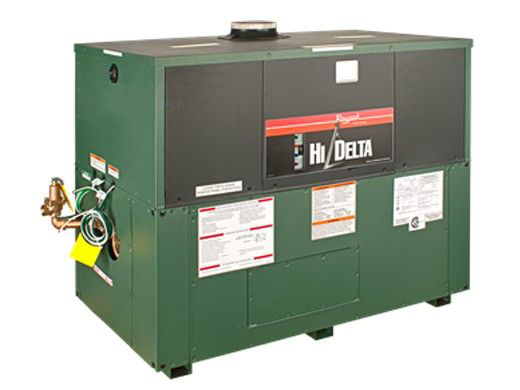

P902C Hi Delta, Natural Gas, Versa Control

0 reviews / Write a review

$21,525.50

P902C Hi Delta, Natural Gas, Versa Control P902C Hi Delta, Natural Gas, Versa Control

Product Code: 016064

Qty

PRODUCT CODE 016064
BTU 900,000

The Hi Delta® line of fan-assisted combustion units offers solid performance and low emissions with flexible control and easy-to-understand diagnostics.

Model Number	Full Input in BTUH	Indoor Stack Dia.	Bypass Options
Model Number	Full Input in BTUH	Indoor Stack Dia.	H-Style Bypass	None (Field-Supplied)	CWR
P-502C	500,000	6"	STD	Yes	Yes
P-602C	650,000	8"	STD	Yes	Yes
P-702C	750,000	8"	STD	Yes	Yes
P-902C	900,000	8"	STD	Yes	Yes

Features:

3.1% efficiency
Multiple vertical venting and sidewall venting options. No extractor required for sidewall applications up to 70ft on room air.
All models indoor/outdoor certified
Patented burner "security blanket" enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue.
105ºF minimum inlet water temperature
Cupro-nickel finned-tube heat exchanger with brass headers. AB 1953 compliant.
VERSA IC® control package with LCD display
Status display lights
Cascade control of up to 4 units, no external sequencer required
Diagnostics center with history in English , not in codes
Modbus RTU BMS port (RS485)
0-10 VDC BMS Interface (set point or direct drive)
Ducted combustion air capable. TruSeal® CSA-Certified direct-vent available.
Certified to the ANSI Z21.56 pool heater standard.

Bypass Options:

The standard external bypass uses a thermostatically-controlled valve to adjust bypass flow and achieve cold-water protection.
All units available without an external bypass; cold-water protection provided in the field.
The Cold Water Run (CWR) option provides electronic control of a variable-speed pump to continuously adjust bypass flow, achieving real-time cold-water protection.

The Hi Delta® line of fan-assisted combustion units offers solid performance and low emissions with flexible control and easy-to-understand diagnostics.

BASIC DATA

Model Number	Full Input in BTUH	Indoor Stack Dia.	Bypass Options
Model Number	Full Input in BTUH	Indoor Stack Dia.	H-Style Bypass	None (Field-Supplied)	CWR
P-502C	500,000	6"	STD	Yes	Yes
P-602C	650,000	8"	STD	Yes	Yes
P-702C	750,000	8"	STD	Yes	Yes
P-902C	900,000	8"	STD	Yes	Yes

Features:

3.1% efficiency
Multiple vertical venting and sidewall venting options. No extractor required for sidewall applications up to 70ft on room air.
All models indoor/outdoor certified
Patented burner "security blanket" enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue.
105ºF minimum inlet water temperature
Cupro-nickel finned-tube heat exchanger with brass headers. AB 1953 compliant.
VERSA IC® control package with LCD display
Status display lights
Cascade control of up to 4 units, no external sequencer required
Diagnostics center with history in English , not in codes
Modbus RTU BMS port (RS485)
0-10 VDC BMS Interface (set point or direct drive)
Ducted combustion air capable. TruSeal® CSA-Certified direct-vent available.
Certified to the ANSI Z21.56 pool heater standard.

Bypass Options:

The standard external bypass uses a thermostatically-controlled valve to adjust bypass flow and achieve cold-water protection.
All units available without an external bypass; cold-water protection provided in the field.
The Cold Water Run (CWR) option provides electronic control of a variable-speed pump to continuously adjust bypass flow, achieving real-time cold-water protection.
