MULTIWAVE ECS System with 80 A Load Center Expansion Module

MULTIWAVE ECS System with 80 A Load Center Expansion Module

0 reviews / Write a review

  • $1,299.00

  • Product Code: PE35065RC

Qty
  • Description
  • Warranty
  • User manual
  • Reviews (0)

PE35065RC

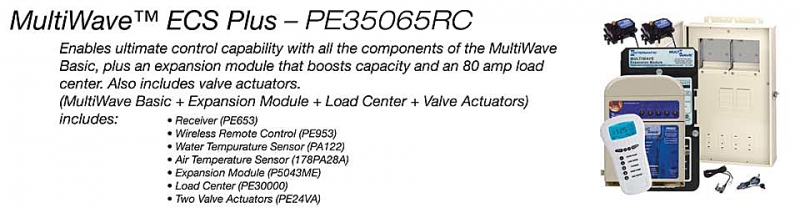

MultiWave™ ECS System with 80 A Load Center, Expansion Module and Two Valve Actuators

This system includes the MultiWaveTM ECS, two PE24VA Intermatic Valve Actuators, and an upgraded 80 A Load Center with 8 breaker base.

Features

  • Controls 5-circuits
  • Controls 4 actuator ports (2 actuators included)
  • 2 for pool to spa valve rotation, 1 for water feature valve rotation, and 1 for solar applications
  • Controls 2 heater circuits
  • USB port for ease of upgrading firmware
  • Load center with eight position 80 Amp breaker base
  • Load center dead front has four knockouts for switches and GFCIs
  • Remote switch for simple ON/OFF control of several components at the same time
  • Visit www.checkfrank.com for configuration assistance
Application
  • Pool and Spa Combinations
  • Water Features
  • Solar Heater/Cooling
  • New Construction or Upgrade Existing Manually or Mechanically Controlled Equipment
Specifications
  • Load Center Ratings
    • 80 A, 120 VAC, 80 A 208 VAC Single Phase, 80 A 240 VAC
  • Input Voltages Display
    • 80 A, 120/240 VAC or 120/208 VAC single phase
  • Number of Circuits
    • 5
  • Heater Protection Switch
    • No
  • Number of Actuators Controlled
    • 4
  • Number of Heaters Controlled
    • 2
  • Motor
    • 17 FLA, 120/240 VAC, 50/60 Hz
    • 80 LRA, 120/240 VAC, 50/60 Hz
  • Number of Breaker Knockouts
    • 8
  • Number of Receptacle/Switch Knockouts
    • 4
  • Enclosure Rating
    • Outdoor Type 3R Plastic
  • Warranty
    • 2 year







1 Year Manufacturer Warranty

Owner's Manual
