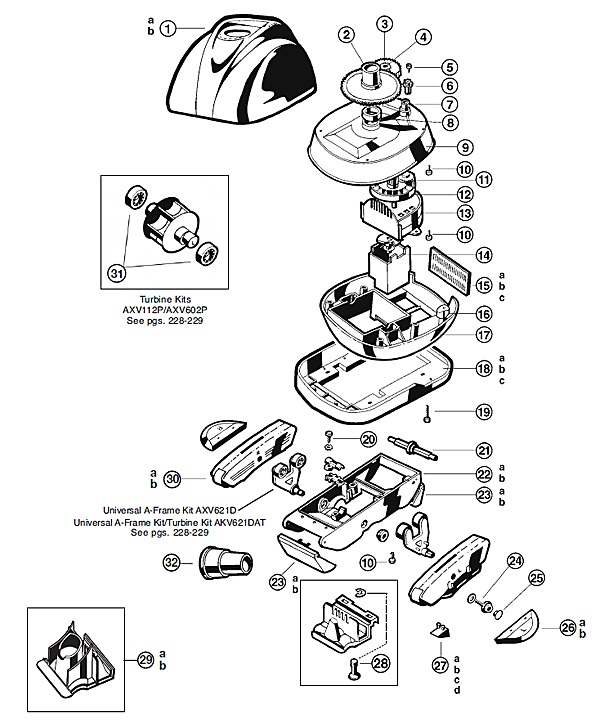

HAYWARD NAVIGATOR PARTS

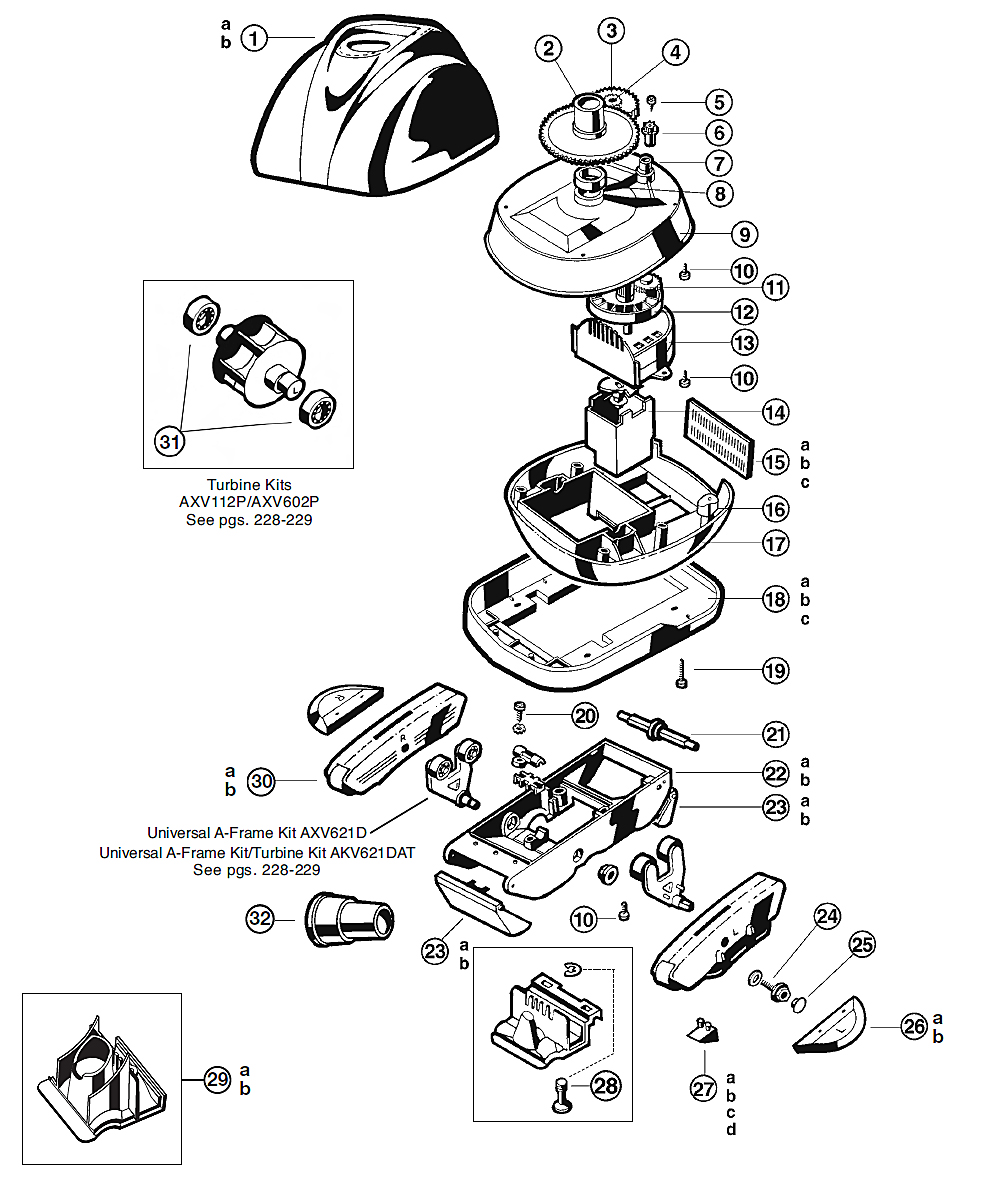

CLICK HERE FOR LARGER IMG

Legend Image Code Name Unit Price Quantity Action Parts
V574P Flow gauge
Legend:
Code: V574P
Unit Price: $58.37
$58.37
AXV079VP Medium turbine/ spindle gear kit (medium turbine, drive gear, bushing, vinyl spindle gear, screw, medium turbine axle, intermediate gear, intermediate gear axle)
Legend:
Code: AXV079VP
Unit Price: $65.13
$65.13
AXV621DAT Universal A-Frame Kit bearing and turbine
Legend:
Code: AXV621DAT
Unit Price: $75.24
$75.24
V109LG Hayward Pool Vac Hose
Legend:
Code: V109LG
Unit Price: $21.82
$21.82
1a AXV411LG Top shell for Navigator concrete, light gray
Legend: 1a
Code: AXV411LG
Unit Price: $385.42
$385.42
1b AXV416BG Top shell for Navigator vinyl, burgundy
Legend: 1b
Code: AXV416BG
Unit Price: $385.42
$385.42
2 AXV070 Cone gear, clear
Legend: 2
Code: AXV070
Unit Price: $120.79
$120.79
3 AXV301 Immediate gear
Legend: 3
Code: AXV301
Unit Price: $14.98
$14.98
4 AXV309 Immediate gear shaft
Legend: 4
Code: AXV309
Unit Price: $3.63
$3.63
5 AXV068 Spindle gear screw
Legend: 5
Code: AXV068
Unit Price: $3.63
$3.63
6 AXV303 Spindle gear
Legend: 6
Code: AXV303
Unit Price: $14.98
$14.98
7 AXV066A Spindle gear bushing
Legend: 7
Code: AXV066A
Unit Price: $17.62
$17.62
8 AXV306 Cone gear bushing
Legend: 8
Code: AXV306
Unit Price: $14.98
$14.98
9 AXV060WH Upper Middle body, white
Legend: 9
Code: AXV060WH
Unit Price: $127.33
$127.33
10 AXV065P Upper body screw (6 pack)
Legend: 10
Code: AXV065P
Unit Price: $12.54
$12.54
11 AXV064A Medium turbine drive gear
Legend: 11
Code: AXV064A
Unit Price: $17.62
$17.62
12 AXV062C Medium turbine
Legend: 12
Code: AXV062C
Unit Price: $29.76
$29.76
13 AXV009 Medium turbine case w/ axle
Legend: 13
Code: AXV009
Unit Price: $68.99
$68.99
14 AXV408P Gear box assembly
Legend: 14
Code: AXV408P
Unit Price: $39.36
$39.36
15c AXV051ALG Rear screen, light gray
Legend: 15c
Code: AXV051ALG
Unit Price: $11.39
$11.39
15b AXV051ABG Rear screen, burgundy
Legend: 15b
Code: AXV051ABG
Unit Price: $11.39
$11.39
15a AXV051ABK Rear screen, black
Legend: 15a
Code: AXV051ABK
Unit Price: $11.39
$11.39
16 AXV054P Float (2 pack)
Legend: 16
Code: AXV054P
Unit Price: $16.67
$16.67
17 AXV050CWH Lower middle body, white
Legend: 17
Code: AXV050CWH
Unit Price: $116.75
$116.75
18c AXV605BKP Bumper, black
Legend: 18c
Code: AXV605BKP
Unit Price: $21.19
$21.19
18b AXV605WHP Bumper, white
Legend: 18b
Code: AXV605WHP
Unit Price: $22.81
$22.81
18a AXV605LGP Bumper, light gray
Legend: 18a
Code: AXV605LGP
Unit Price: $22.81
$22.81
19 AXV057P Middle Body screw (6 pack)
Legend: 19
Code: AXV057P
Unit Price: $57.51
$57.51
20 AXV313 Lower body screw (4 pack)
Legend: 20
Code: AXV313
Unit Price: $10.47
$10.47
21 AXV031B Flap Adjuster
Legend: 21
Code: AXV031B
Unit Price: $15.88
$15.88
22a AXV230DBK Lower body, black
Legend: 22a
Code: AXV230DBK
Unit Price: $64.58
$64.58
22b AXV230DWH Lower body, white
Legend: 22b
Code: AXV230DWH
Unit Price: $62.52
$62.52
23b AXV434WHP Flap kit, white (2 flaps, front and rear springs)
Legend: 23b
Code: AXV434WHP
Unit Price: $36.47
$36.47
23a AXV434BKP Flap kit, black (2 flaps, front and rear springs)
Legend: 23a
Code: AXV434BKP
Unit Price: $36.34
$36.34
24 AXV015P Pod screw kit (2 hex head screws and 2 washers)
Legend: 24
Code: AXV015P
Unit Price: $10.47
$10.47
25 AXV016P Pod plug (6 pack)
Legend: 25
Code: AXV016P
Unit Price: $10.47
$10.47
26b AXV604WHP Wing kit, white (right and left wings)
Legend: 26b
Code: AXV604WHP
Unit Price: $31.26
$31.26
26a AXV604BKP Wing kit, black (right and left wings)
Legend: 26a
Code: AXV604BKP
Unit Price: $22.18
$22.18
27c AXV014CP Pod shoes, ceramic (4 pack)
Legend: 27c
Code: AXV014CP
Unit Price: $30.31
$30.31
27b AXV413P Pod shoes, vinyl (4 pack)
Legend: 27b
Code: AXV413P
Unit Price: $28.24
$28.24
27a AXV414P Pod shoes, concrete (4 pack)
Legend: 27a
Code: AXV414P
Unit Price: $22.62
$22.62
27d AXV014SP Pod shoes, slotted (4 pack)
Legend: 27d
Code: AXV014SP
Unit Price: $27.37
$27.37
28 AXV314P Captive Screw and Retaining Clip
Legend: 28
Code: AXV314P
Unit Price: $5.25
$5.25
29b AXV603A Fixed access cover assembly for vinyl models (for Model #925V)
Legend: 29b
Code: AXV603A
Unit Price: $18.45
$18.45
29a AXV603 Fixed access cover assembly for concrete and desert models (for Model #925C or 925 CS)
Legend: 29a
Code: AXV603
Unit Price: $16.78
$16.78
30b AXV417BKP Pod kit, black (right/left pods, plugs, screws and washers)
Legend: 30b
Code: AXV417BKP
Unit Price: $85.65
$85.65
30a AXV417WHP Pod kit, white (right/left pods, plugs, screws and washers)
Legend: 30a
Code: AXV417WHP
Unit Price: $70.34
$70.34
31 AXV055P Turbine bearings (2 pack)
Legend: 31
Code: AXV055P
Unit Price: $18.46
$18.46
32 AXV093CP Skimmer cone
Legend: 32
Code: AXV093CP
Unit Price: $16.97
$16.97
