Diver Dave & Wanda Whale

Select Manufacturer

Hayward

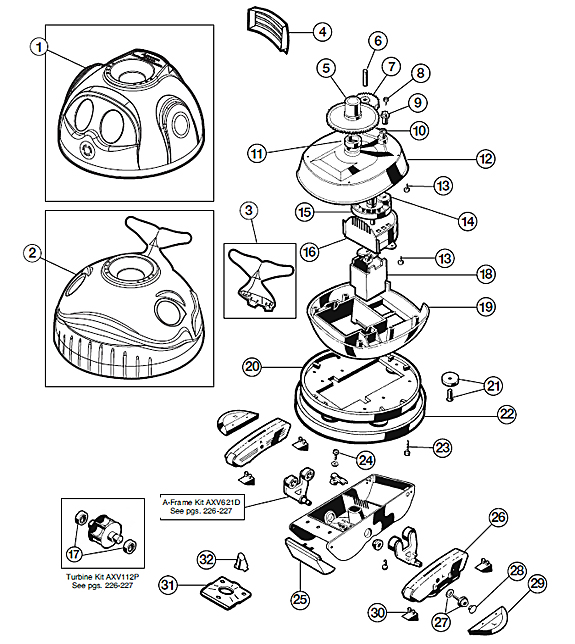

Legend	Code	Name	Unit Price
1	AXV457SD	Shell for Diver Dave Legend: 1 Code: AXV457SD Unit Price: $340.58	$340.58
2	AXV457W	Shell for Wanda the Whale Legend: 2 Code: AXV457W Unit Price: $340.58	$340.58
3	AXV457WT	Tail Assembly for Wanda the Whale Legend: 3 Code: AXV457WT Unit Price: $33.04	$33.04
4	AXV513BK	Screen, Black Legend: 4 Code: AXV513BK Unit Price: $22.67	$22.67
5	AXV070	Cone Gear Legend: 5 Code: AXV070 Unit Price: $125.97	$125.97
6	AXV309	Intermediate Gear Shaft Legend: 6 Code: AXV309 Unit Price: $3.80	$3.80
7	AXV301	Intermediate Gear Legend: 7 Code: AXV301 Unit Price: $21.44	$21.44
8	AXV068	Spindle Gear Screw Legend: 8 Code: AXV068 Unit Price: $2.64	$2.64
9	AXV303	Spindle Gear Legend: 9 Code: AXV303 Unit Price: $21.44	$21.44
10	AXV066A	Spindle Gear Bushing Legend: 10 Code: AXV066A Unit Price: $28.94	$28.94
11	AXV306	Cone Gear Bushing Legend: 11 Code: AXV306 Unit Price: $21.44	$21.44
12	AXV060WH	Upper Middle Body Legend: 12 Code: AXV060WH Unit Price: $132.79	$132.79
13	AXV065P	Lower/Upper Body Screw (6 pack) Legend: 13 Code: AXV065P Unit Price: $17.89	$17.89
14	AXV064A	Medium Turbine Drive Gear Legend: 14 Code: AXV064A Unit Price: $28.94	$28.94
15	AXV062C	Medium Turbine Drive Gear Legend: 15 Code: AXV062C Unit Price: $31.04	$31.04
16	AXV009	Medium Turbine Case w/ Axle Legend: 16 Code: AXV009 Unit Price: $71.93	$71.93
17	AXV055P	Turbine Bearings (2) Legend: 17 Code: AXV055P Unit Price: $18.46	$18.46
18	AXV518P	Gear Box Legend: 18 Code: AXV518P Unit Price: $40.56	$40.56
19	AXV050CWH	Lower Middle Body Legend: 19 Code: AXV050CWH Unit Price: $121.73	$121.73
20	AXV525	Base Plate Assembly Legend: 20 Code: AXV525 Unit Price: $143.82	$143.82
21	AXV551P	Wheel Kit (6 wheels, axles) Legend: 21 Code: AXV551P Unit Price: $59.94	$59.94
22	AXV458	Ring, Black Legend: 22 Code: AXV458 Unit Price: $44.91	$44.91
23	AXV057P	Middle Body Screw (6 pack) Legend: 23 Code: AXV057P Unit Price: $22.00	$22.00
24	AXV313	Lower Body Screw Legend: 24 Code: AXV313 Unit Price: $14.96	$14.96
25	AXV442	Flap Kit, White (2 flaps, front and rear) Legend: 25 Code: AXV442 Unit Price: $37.49	$37.49
26	AXV417WHP	Pod Kit Legend: 26 Code: AXV417WHP Unit Price: $70.34	$70.34
27	AXV015P	Pod Screw Kit (2 hex head screws and 2 washers) Legend: 27 Code: AXV015P Unit Price: $14.96	$14.96
28	AXV016P	Pod Plug (6 pack) Legend: 28 Code: AXV016P Unit Price: $14.96	$14.96
29	AXV552WHP	Wing Kit, White Legend: 29 Code: AXV552WHP Unit Price: $22.27	$22.27
30	AXV014SP	Slotted Santoprene Shoes (4 pack) Legend: 30 Code: AXV014SP Unit Price: $28.55	$28.55
31	AXV304A	Bottom Plate Legend: 31 Code: AXV304A Unit Price: $44.91	$44.91
32	AXV512A	Nozzle Legend: 32 Code: AXV512A Unit Price: $14.29	$14.29
