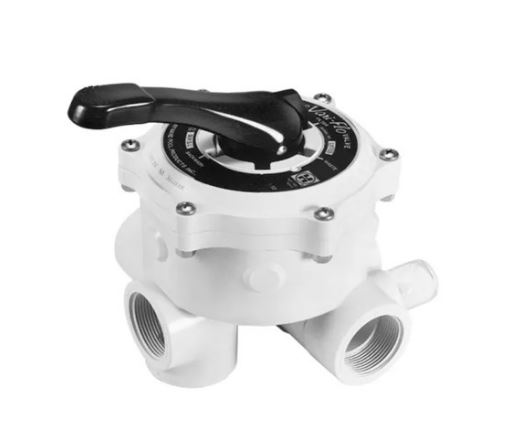

Vari-Flo Multiport Valve for DE filter 1.5 in. Model SP0710XR50

Vari-Flo Multiport valves have a unique six position filter control valve - combining outstanding hydraulic and mechanical characteristic and piping versatility with rugged, modern materials making the valve completely, corrosion-free. The Vari-Flo multiport valve is an efficient, positive sealing control valve for all filtration applications. For use with Hayward Pro-Grid Vertical Grid DE Filters only.

Haywards Vari-Flo Multiport valves are made of PermaGlass XL material engineered for maximum flow at lower pressure drops will be the choice in multiport valves. All Vari-Flo control valves feature an easy-to-use lever action handle that lets you dial up to six valve/filter funtions: filter, backwash, waste, rinse, closed or re-circulate. Complete with an integral sight glass that lets you see when the backwashing cycle is complete, our wide selection of valve configurations allows you to match the right Vari-Flo valve to the proper application - residential, commercial, top-mount or side mount.

The SP710XR50 Filter Valve is used on the filters shown below.

Micro Clear - Models DE2400, 3600, 4800, 6000

Micro Clear - Models DE360S, 480S, 600S, 720S

Pro Grid Models DE2420, 3620, 4820 6020, 7220

Vari-Flo Control Valve Funtions

• Filter - For normal filtering and regular vacuuming
• Backwash - For cleaning filter sand bed of accumulated debris
• Waste - By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line
• Re-circulate - Water is re-circulated through the valve by passing the filter
• Closed - Shuts off the flow from the pump to the filter
• Winter - For winterizing (SP0714T ONLY)
• 1 Year warranty

The following valves are used with the Hayward Micro-Clear and Pro-Grid DE Filters

Performance Data and Valve Positions:

 Valve & Coupling Selection
