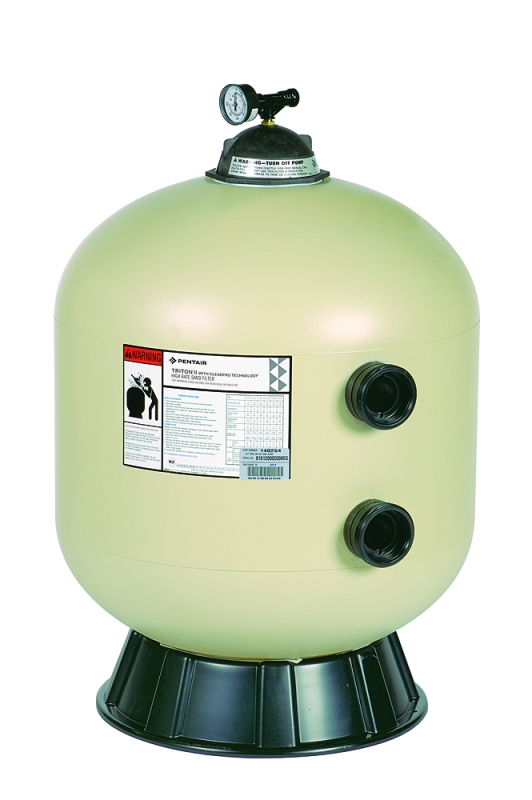

Pentair Triton II TR40 Filter - VALVE SOLD SEPERATELY
-
Available in Store. Call 909-595-5744
or email sales@americanbestpoolsupply.com for more details
Parts Available
- Product Code: 140236
TRITON II FILTER PARTS LIST
The #1 sand filter in the world, Triton® II Side Mount Filters are the result of nearly 50 years of product evolution and refinement. It has set the industry standard for effectiveness, efficiency, long runs between service, and providing years of dependable, low maintenance operation. Triton® II Side Mount Filters feature a special internal design that keeps the sand bed level, ensuring even water flow, and resulting in the most efficient filtration possible.
Now Available with ClearPro™ Technology for 60% Cleaner Water
Triton® II Side Mount Filterss with ClearPro™ technology, remove particles up to five times smaller than traditional sand filters, well below what your eye can detect for water that truly sparkles with clarity. The ClearPro secret is a proprietary, porous tube that water must pass through before re-entering the pool. It creates a final barrier to the very smallest particles that sand cannot trap, including the finest dust particles, algae and pollens.
Features
- Heavy-duty closure provides easy inspection, and features an easy-to-read pressure gauge with air relief valve
- Swing-away diffuser allows instant access to sand and all internal parts
- All internal parts are threaded for ease of service
- Internal air bleed
- Bulkhead connectors are threaded for easy installation and service
-
Combination sand and water drain makes servicing and winterizing fast
and easy - Maximum Operating Pressure 50 psi
Product Specifications
| TRITON II SAND FILTERS | ||||||||||||
| Turnover Capacity (Gallons) | ||||||||||||
| Product | Model | Effective Filtrtation Area (Sq Ft) | Flow Rate (GPM) | Flow Rate (GPM Comm) | 8 Hour | 10 Hour | 12 Hour | Filter Media Pea Gravel Required (Lbs) | Filter Media Sand Required (Lbs) | All Sand Required (Lbs) | Carton Qty | Carton Wt (Lbs) |
| 140236 | TR 40 | 1.92 | 38 | 38 | 18240 | 22800 | 27360 | 50 | 125 | 175 | 1 | 25 |
| 140249 | TR 50 | 2.46 | 49 | 49 | 23520 | 29400 | 35280 | 50 | 175 | 225 | 1 | 34 |
| 140264 | TR 60 | 3.14 | 63 | 63 | 30240 | 37800 | 45360 | 75 | 250 | 325 | 1 | 40 |
| 140210 | TR 100 | 4.91 | 98 | 74 | 47040 | 58800 | 70560 | 150 | 450 | 600 | 1 | 65 |
| 140243 | TR 140 | 7.06 | 141 | 106 | 67680 | 84600 | 101520 | 275 | 650 | 925 | 1 | 75 |
