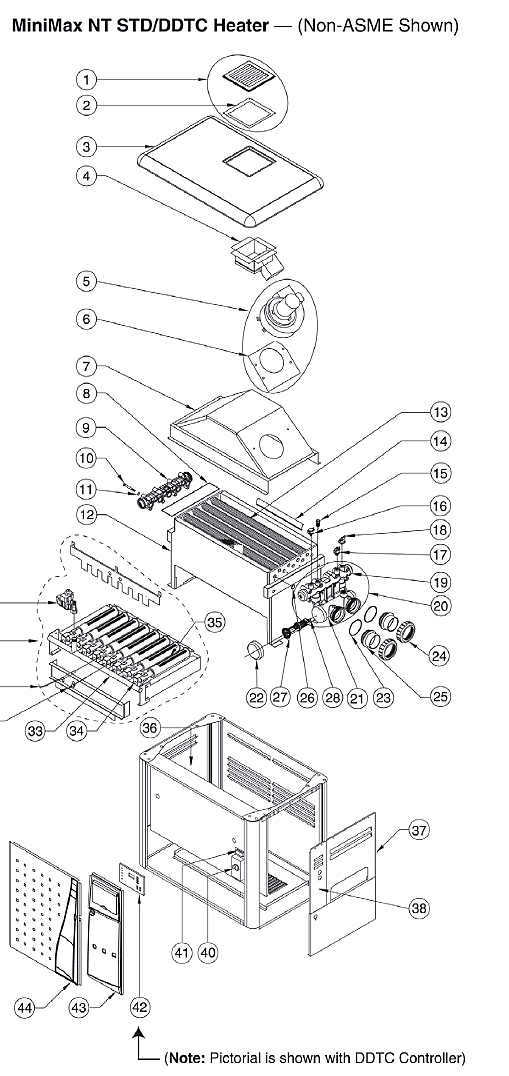

MiniMax® NT STD Heater, with DDTC Controller

Select Manufacturer

Pentair

Legend	Code	Name	Unit Price
	075173	Thermal cut-off Model Nos., 200, 250, 300, 400. Legend: Code: 075173 Unit Price: $50.37	$50.37
	472508	Transformer, 40 VA Model Nos., 200, 250, 300, 400. Legend: Code: 472508 Unit Price: $115.91	$115.91
	460506	Indoor vent adaptor, 4 in. Model Nos., 200, 250, 300, 400. Legend: Code: 460506 Unit Price: $295.07	$295.07
	460507	Indoor vent adaptor, 5 in. Model Nos., 200, 250, 300, 400. Legend: Code: 460507 Unit Price: $295.96	$295.96
	470328	Fan Tubing Legend: Code: 470328 Unit Price: $36.49	$36.49
	471548	Control Panel Cover Legend: Code: 471548 Unit Price: $30.06	$30.06
	471773	Power Switch Legend: Code: 471773 Unit Price: $35.32	$35.32
	471715	Top Panel Clips Legend: Code: 471715 Unit Price: $10.55	$10.55
	471549	Control Cover Hinge Legend: Code: 471549 Unit Price: $2.98	$2.98
	070715	Clips to hold Thermal Fuse Legend: Code: 070715 Unit Price: $2.98	$2.98
	472255	Face Plate Legend: Code: 472255 Unit Price: $11.01	$11.01
3	472353	Top cover w/posts model 200 Legend: 3 Code: 472353 Unit Price: $580.83	$580.83
3	472354	Top cover w/posts model 250 Legend: 3 Code: 472354 Unit Price: $566.56	$566.56
3	472355	Top cover w/posts model 300 Legend: 3 Code: 472355 Unit Price: $579.82	$579.82
3	472356	Top cover w/posts model 400 Legend: 3 Code: 472356 Unit Price: $606.65	$606.65
4	472373	Exhaust assembly Model Nos., 200, 300, 400. Legend: 4 Code: 472373 Unit Price: $476.01	$476.01
4	472376	Exhaust assembly model 250 Legend: 4 Code: 472376 Unit Price: $476.01	$476.01
5	472361	Blower w/gasket model 200 Legend: 5 Code: 472361 Unit Price: $1,074.91	$1,074.91
5	472374	Blower w/gasket model 400 Legend: 5 Code: 472374 Unit Price: $812.54	$812.54
6	471610	Gasket, blower Model Nos., 200, 250, 300, 400. Legend: 6 Code: 471610 Unit Price: $45.83	$45.83
7	472007	Flue collector model 250 Legend: 7 Code: 472007 Unit Price: $267.73	$267.73
7	472006	Flue collector model 300 Legend: 7 Code: 472006 Unit Price: $266.77	$266.77
7	472005	Flue collector model 400 Legend: 7 Code: 472005 Unit Price: $283.94	$283.94
8	472270	Insulation, header/ Hi-limit Model Nos., 200, 250, 300, 400. Legend: 8 Code: 472270 Unit Price: $17.42	$17.42
9	471991	Return header assembly Model Nos., 200, 250, 300, 400. Legend: 9 Code: 471991 Unit Price: $121.77	$121.77
10	471622	Bolt, heat exchanger Model Nos., 200, 250, 300, 400. Legend: 10 Code: 471622 Unit Price: $2.98	$2.98
11	072184	Washer, heat exchanger Model Nos., 200, 250, 300, 400. Legend: 11 Code: 072184 Unit Price: $2.98	$2.98
12	471904	Fire box assembly model 200 Legend: 12 Code: 471904 Unit Price: $655.74	$655.74
12	471835	Fire box assembly model 250 Legend: 12 Code: 471835 Unit Price: $854.32	$854.32
12	471922	Fire box assembly model 300 Legend: 12 Code: 471922 Unit Price: $944.45	$944.45
12	472332	Fire box assembly model 400 Legend: 12 Code: 472332 Unit Price: $1,054.71	$1,054.71
13	471910	Heat exchanger w/headers model 200 Legend: 13 Code: 471910 Unit Price: $2,372.71	$2,372.71
13	471785	Heat exchanger w/headers model 250 Legend: 13 Code: 471785 Unit Price: $2,489.08	$2,489.08
13	471928	Heat exchanger w/headers model 300 Legend: 13 Code: 471928 Unit Price: $2,640.87	$2,640.87
13	471838	Heat exchanger w/headers model 400 Legend: 13 Code: 471838 Unit Price: $2,950.79	$2,950.79
13	471933	Heat exchanger w/o headers model 200 Legend: 13 Code: 471933 Unit Price: $1,335.28	$1,335.28
13	471934	Heat exchanger w/o headers model 250 Legend: 13 Code: 471934 Unit Price: $1,244.63	$1,244.63
13	471935	Heat exchanger w/o headers model 300 Legend: 13 Code: 471935 Unit Price: $1,533.05	$1,533.05
13	471936	Heat exchanger w/o headers model 400 Legend: 13 Code: 471936 Unit Price: $1,778.49	$1,778.49
14	471642	Baffle, heat exchanger model 200 Legend: 14 Code: 471642 Unit Price: $9.83	$9.83
14	471641	Baffle, heat exchanger model 250 Legend: 14 Code: 471641 Unit Price: $11.05	$11.05
14	471896	Baffle, heat exchanger model 300 Legend: 14 Code: 471896 Unit Price: $16.64	$16.64
14	471640	Baffle, heat exchanger model 400 Legend: 14 Code: 471640 Unit Price: $11.67	$11.67
15	471566	Thermistor probe Legend: 15 Code: 471566 Unit Price: $80.83	$80.83
16	471587	Hi-limit thermostat, Model Nos., 200, 250, 300, 400.Model Nos., 200, 250, 300, 400.5 Legend: 16 Code: 471587 Unit Price: $108.23	$108.23
17	471694	Hi-limit thermostat, Model Nos., 200, 250, 300, 400.50 Legend: 17 Code: 471694 Unit Price: $110.24	$110.24
18	472125	Water pressure switch Model Nos., 200, 250, 300, 400. Legend: 18 Code: 472125 Unit Price: $246.96	$246.96
19	472363	In/out top sub-header assembly Model Nos., 200, 250, 300, 400. Legend: 19 Code: 472363 Unit Price: $312.60	$312.60
20	471992	In/out main header assembly Model Nos., 200, 250, 300, 400. Legend: 20 Code: 471992 Unit Price: $742.33	$742.33
21	472364	In/out bottom sub-header Model Nos., 200, 250, 300, 400. Legend: 21 Code: 472364 Unit Price: $332.57	$332.57
22	471420	Cap, in/out bottom sub-header Model Nos., 200, 250, 300, 400. Legend: 22 Code: 471420 Unit Price: $30.06	$30.06
23	274494	O-ring, adapter Model Nos., 200, 250, 300, 400. Legend: 23 Code: 274494 Unit Price: $9.03	$9.03
24	274440	Adapter, bulkhead ring Model Nos., 200, 250, 300, 400. Legend: 24 Code: 274440 Unit Price: $35.93	$35.93
25	471441	Adapter, bulkhead, 2 in. Model Nos., 200, 250, 300, 400. Legend: 25 Code: 471441 Unit Price: $39.20	$39.20
26	070951	Gasket, fin tube, seal Model Nos., 200, 250, 300, 400. Legend: 26 Code: 070951 Unit Price: $2.98	$2.98
27	471750	Flow valve assembly Model Nos., 200, 250, 300, 400. Legend: 27 Code: 471750 Unit Price: $413.14	$413.14
28	472330	Power element, flow valve Model Nos., 200, 250, 300, 400. Legend: 28 Code: 472330 Unit Price: $124.33	$124.33
29	460760	Gas valve, natural gas Model Nos., 200, 250, 300, 400. Legend: 29 Code: 460760 Unit Price: $542.10	$542.10
29	460761	Gas valve, propane Model Nos., 200, 250, 300, 400. Legend: 29 Code: 460761 Unit Price: $542.10	$542.10
30	460784	200 Kit, burner NT STD 200 NA/LP Legend: 30 Code: 460784 Unit Price: $698.51	$698.51
30	460785	250 Kit, burner NT STD 250 NA/LP Legend: 30 Code: 460785 Unit Price: $777.04	$777.04
30	460786	300 Kit, burner NT STD 300 NA/LP Legend: 30 Code: 460786 Unit Price: $848.99	$848.99
30	460787	400 Kit, burner NT STD 400 NA/LP Legend: 30 Code: 460787 Unit Price: $928.61	$928.61
30	470784	200 Burner tray assembly, propane Legend: 30 Code: 470784 Unit Price: $768.21	$768.21
31	472604	Igniter Model Nos., 200, 250, 300, 400. Legend: 31 Code: 472604 Unit Price: $205.83	$205.83
32	471603	Flame sensor Model Nos., 200, 250, 300, 400. Legend: 32 Code: 471603 Unit Price: $66.14	$66.14
33	471892	200 Gas manifold w/out orifices, natural or propane Legend: 33 Code: 471892 Unit Price: $480.11	$480.11
33	471661	250 Gas manifold w/out orifices, natural or propane Legend: 33 Code: 471661 Unit Price: $480.11	$480.11
33	471889	300 Gas manifold w/out orifices, natural or propane Legend: 33 Code: 471889 Unit Price: $480.11	$480.11
33	471708	400 Gas manifold w/out orifices, natural or propane Legend: 33 Code: 471708 Unit Price: $480.11	$480.11
35	070230	Burner Model Nos., 200, 250, 300, 400., Model 200 (2 ea.), 250 (3 ea.), 300 (4 ea.), 400 (6 ea.). Legend: 35 Code: 070230 Unit Price: $256.05	$256.05
35	471970	Burner w/bracket Model Nos., 200, 250, 300, 400. Legend: 35 Code: 471970 Unit Price: $140.53	$140.53
36	471575	Jacket, upper panel, left Model Nos., 200, 250, 300, 400. Legend: 36 Code: 471575 Unit Price: $236.96	$236.96
37	471576	Jacket, upper panel, right Model Nos., 200, 250, 300, 400. Legend: 37 Code: 471576 Unit Price: $236.96	$236.96
38	471767	Jacket, upper sub-plate Model Nos., 200, 250, 300, 400. Legend: 38 Code: 471767 Unit Price: $111.65	$111.65
41	472447	Module, ignition control Model Nos., 200, 250, 300, 400. Legend: 41 Code: 472447 Unit Price: $384.38	$384.38
42	472100	DDTC board Model Nos., 200, 250, 300, 400. Legend: 42 Code: 472100 Unit Price: $618.94	$618.94
43	471727	Right door assembly with controller Model Nos., 200, 250, 300, 400. Legend: 43 Code: 471727 Unit Price: $1,681.25	$1,681.25
43	472372	Right door assembly w/o controller Model Nos., 200, 250, 300, 400. Legend: 43 Code: 472372 Unit Price: $582.18	$582.18
44	471900	Left door assembly model 200 Legend: 44 Code: 471900 Unit Price: $417.54	$417.54
44	472318	Left door assembly model 250 Legend: 44 Code: 472318 Unit Price: $441.60	$441.60
44	471918	Left door assembly model 300 Legend: 44 Code: 471918 Unit Price: $484.04	$484.04
44	471726	Left door assembly model 400 Legend: 44 Code: 471726 Unit Price: $410.08	$410.08
