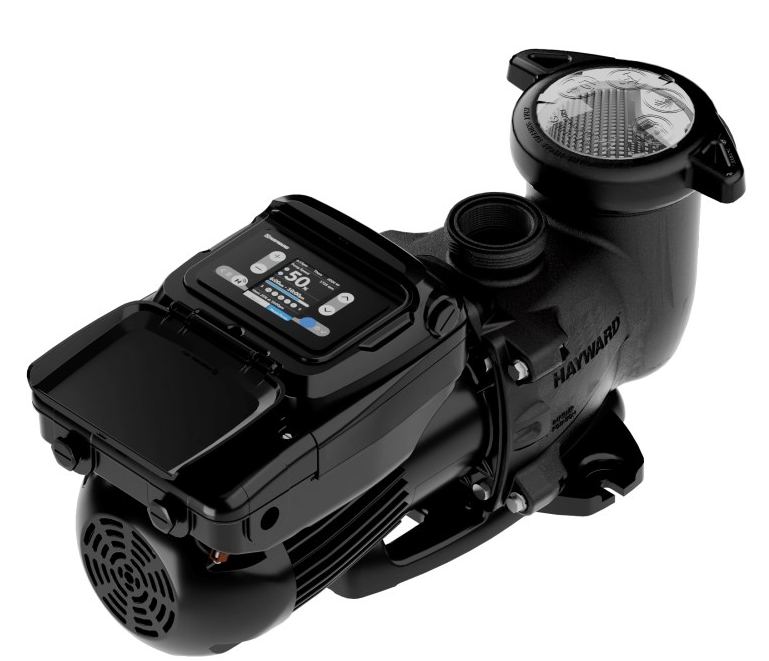

MaxFlo VS 500 Pump with OmniX 1.65 HP - IN STORE PURCHASE ONLY

MaxFlo VS 500 Pump with OmniX 1.65 HP - IN STORE PURCHASE ONLY

0 reviews / Write a review

Available in Store - Call for price

Product Code: SP23520VSPX1

PRODUCT CODE	SP23520VSPX1
HP	1.65 HP
VOLTAGE	115/230V

What's New with the SP23520VSPX1 Model?

Embedded OmniX Intelligence: Allows the pump to integrate directly with Hayward OmniLogic and smart pool automation systems right out of the box.
Optional Remote/App Access: Adding an optional OmniX Gateway gives you smartphone app control for the pump and connected pool equipment.
Universal Display Control: Features an updated digital display pad that can be turned in 4 directions on the motor or wall-mounted up to 50 feet away.

Description

MaxFlo VS 500 combines the industry's most recognizable workhorse pump with the efficiency of a variable speed motor and class leading automation compatibility. At the center is our new Universal Display, delivering a consistent, intuitive control experience across Omni®, OmniX®, and competitive automation systems. With OmniX embedded intelligence, the pump provides enhanced programmability, advanced diagnostics, and seamless remote connectivity.

Feature Bullets

Versatile Display is four-way rotatable and wall-mountable for easy access
See-through strainer cover lets you see when the basket needs cleaning
1 ½"" x 2"" union connections allow for seamless installation in any application
Advanced hydraulic design offers increased efficiency and incredibly quiet operation, especially at lower speeds
Total Control: Advanced UI delivers simple and intuitive programming, along with the flexibility of Omni or OmniX automation
Backwards Compatible OmniX Retrofit Kits available for existing MaxFlo VS 500 pumps
OmniX Gateway: With the additional OmniX Gateway, control your pool equipment from anywhere to allow for remote access

Technical Specifications

Feature / Attribute	Specification Details
Model Number	SP23520VSPX1
Series / Line	MaxFlo® VS 500 with OmniX
Total Horsepower (THP)	1.65 HP
Rated Horsepower (HP)	0.85 HP
Speed Range	600 – 3000 RPM
Voltage Supply	Dual Voltage (115V / 230V)
Amperage Draw	6.5A – 7.2A
Weighted Energy Factor (WEF)	10.7 (115V) / 10.2 (230V)
Union Connections	1.5" x 2" Unions included
Basket Capacity	94 cu. in. strainer basket
Motor Type	Permanent Magnet, Totally Enclosed Fan-Cooled (TEFC)
Shaft Seal	Extended-life Viton® chemical-resistant seal
Automation Compatibility	Built-in OmniX / OmniLogic / Universal Communications
Warranty	3-Year Limited Manufacturer Warranty

Coverage Period: 3 Years on parts (and typically 1 year on labor when installed by a qualified pool professional).
Authorized Purchase Requirement: The full warranty terms require purchasing through an authorized Hayward pool dealer or retailer.
Professional Installation: Hayward strongly recommends professional installation by a licensed trade technician, as improper or self-installation can void or limit warranty coverage depending on your region.
