LOW NoX 207-407

Select Manufacturer

Raypak

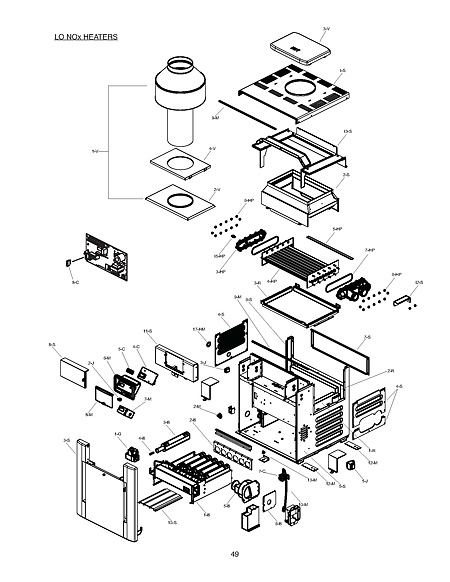

CLICK HERE FOR LARGER IMAGES AND COMPLETE REPLACEMENT PARTS

Legend	Code	Name	Unit Price
1-M	009133F	Pressure Switch 11 PSI 207, 267, 337, 407 Legend: 1-M Code: 009133F Unit Price: $45.00	$45.00
1-M	006737F	Pressure Switch 1.75 PSI 207, 267, 337, 407 Legend: 1-M Code: 006737F Unit Price: $91.23	$91.23
1-J	006736F	Transformer 120/240/24V 207, 267, 337, 407 Legend: 1-J Code: 006736F Unit Price: $113.86	$113.86
1-HM	010363F	Heat Exchanger Assy Cupro Nickel ASME CI 407 Legend: 1-HM Code: 010363F Unit Price: $3,938.16	$3,938.16
1-HM	010362F	Heat Exchanger Assy Cupro Nickel ASME CI 337 Legend: 1-HM Code: 010362F Unit Price: $3,737.67	$3,737.67
1-HM	010361F	Heat Exchanger Assy Cupro Nickel ASME CI 267 Legend: 1-HM Code: 010361F Unit Price: $3,543.03	$3,543.03
1-HM	010360F	Heat Exchanger Assy Cupro Nickel ASME CI 207 Legend: 1-HM Code: 010360F Unit Price: $3,404.28	$3,404.28
1-HM	010054F	Heat Exchanger Assy Copper ASME CI 407 Legend: 1-HM Code: 010054F Unit Price: $3,690.64	$3,690.64
1-HM	010053F	Heat Exchanger Assy Copper ASME CI 337 Legend: 1-HM Code: 010053F Unit Price: $3,395.42	$3,395.42
1-HM	006727F	Heat Exchanger Assy Copper ASME CI 267 Legend: 1-HM Code: 006727F Unit Price: $3,109.15	$3,109.15
1-HM	010051F	Heat Exchanger Assy Copper ASME CI 207 Legend: 1-HM Code: 010051F Unit Price: $2,964.10	$2,964.10
1-B	010343F	Burner Trays w/Burners (0-5000) 207 Legend: 1-B Code: 010343F Unit Price: $807.45	$807.45
1-B	010344F	Burner Trays w/Burners (0-5000) 267 Legend: 1-B Code: 010344F Unit Price: $900.92	$900.92
1-B	010345F	Burner Trays w/Burners (0-5000) 337 Legend: 1-B Code: 010345F Unit Price: $1,210.51	$1,210.51
1-B	010346F	Burner Trays w/Burners (0-5000) 407 Legend: 1-B Code: 010346F Unit Price: $1,533.52	$1,533.52
1-B	010084F	Burner Trays w/o Burners (0-5000) 207 Legend: 1-B Code: 010084F Unit Price: $807.45	$807.45
1-B	010085F	Burner Trays w/o Burners (0-5000) 267 Legend: 1-B Code: 010085F Unit Price: $900.92	$900.92
1-B	010086F	Burner Trays w/o Burners (0-5000) 337 Legend: 1-B Code: 010086F Unit Price: $1,210.51	$1,210.51
1-B	010087F	Burner Trays w/o Burners (0-5000) 407 Legend: 1-B Code: 010087F Unit Price: $961.86	$961.86
1-C	006725F	Thermostat Auto Reset 135 Deg Surface Mount 207, 267, 337, 407 Legend: 1-C Code: 006725F Unit Price: $62.53	$62.53
1-G	010329F	Combination Valve - Gas On/Off -Nat 207, 267, 337, 407 Legend: 1-G Code: 010329F Unit Price: $413.14	$413.14
1-HP	010043F	Heat Exchanger Assy Copper 207 Legend: 1-HP Code: 010043F Unit Price: $2,620.07	$2,620.07
1-HP	010044F	Heat Exchanger Assy Copper 267 Legend: 1-HP Code: 010044F Unit Price: $2,763.65	$2,763.65
1-HP	010045F	Heat Exchanger Assy Copper 337 Legend: 1-HP Code: 010045F Unit Price: $2,901.79	$2,901.79
1-HP	010046F	Heat Exchanger Assy Copper 407 Legend: 1-HP Code: 010046F Unit Price: $2,974.95	$2,974.95
1-HP	010356F	Heat Exchanger Assy Cupro Nickel 207 Legend: 1-HP Code: 010356F Unit Price: $3,268.95	$3,268.95
1-HP	010357F	Heat Exchanger Assy Cupro Nickel 267 Legend: 1-HP Code: 010357F Unit Price: $3,523.61	$3,523.61
1-HP	010358F	Heat Exchanger Assy Cupro Nickel 337 Legend: 1-HP Code: 010358F Unit Price: $3,768.85	$3,768.85
1-HP	010359F	Heat Exchanger Assy Cupro Nickel 407 Legend: 1-HP Code: 010359F Unit Price: $3,972.04	$3,972.04
1-R	010079F	Refractory Common (Left & Right) 207, 267, 337, 407 Legend: 1-R Code: 010079F Unit Price: $353.59	$353.59
1-P	010232F	Pilot Nat. IID Low Nox 207, 267, 337, 407 Legend: 1-P Code: 010232F Unit Price: $185.81	$185.81
2-M	006035F	Roll-Out Switch 300 Deg Farenheit 207, 267, 337, 407 Legend: 2-M Code: 006035F Unit Price: $74.34	$74.34
2-J	009493F	Rocker Switch 308, 267, 337, 407 Legend: 2-J Code: 009493F Unit Price: $36.31	$36.31
2-HM	012319F	Inlet/Outlet Header ASME CI 207, 267, 337, 407 Legend: 2-HM Code: 012319F Unit Price: $563.56	$563.56
2-HM	006730F	Inlet/Outlet Header ASME CI (Complete) 207, 267, 337, 407 Legend: 2-HM Code: 006730F Unit Price: $647.48	$647.48
2-B	010254F	Burner Hold Down Kit 207 Legend: 2-B Code: 010254F Unit Price: $206.64	$206.64
2-B	010255F	Burner Hold Down Kit 267 Legend: 2-B Code: 010255F Unit Price: $206.67	$206.67
2-B	010256F	Burner Hold Down Kit 337 Legend: 2-B Code: 010256F Unit Price: $206.71	$206.71
2-B	010257F	Burner Hold Down Kit 407 Legend: 2-B Code: 010257F Unit Price: $206.64	$206.64
2-C	600892B	AGS 135 Deg (Auto Gas Shut-Off) - Red Epoxy 207, 267, 337, 407 Legend: 2-C Code: 600892B Unit Price: $68.23	$68.23
2-HP	006827F	Inlet/Outlet Header Complete 207, 267, 337, 407 Legend: 2-HP Code: 006827F Unit Price: $758.67	$758.67
2-HP	006706F	Inlet/Outlet Header (Includes 6-HP) 207, 267, 337, 407 Legend: 2-HP Code: 006706F Unit Price: $577.10	$577.10
2-R	010083F	Refractory Uncommon (Front & Rear) 407 Legend: 2-R Code: 010083F Unit Price: $382.04	$382.04
2-R	010082F	Refractory Uncommon (Front & Rear) 337 Legend: 2-R Code: 010082F Unit Price: $364.48	$364.48
2-R	010081F	Refractory Uncommon (Front & Rear) 267 Legend: 2-R Code: 010081F Unit Price: $325.13	$325.13
2-R	010080F	Refractory Uncommon (Front & Rear) 207 Legend: 2-R Code: 010080F Unit Price: $288.58	$288.58
3-M	007224F	Pressure Relief Valve 125 PSI 267, 337, 407 Legend: 3-M Code: 007224F Unit Price: $139.24	$139.24
3-M	008091F	Pressure Relief Valve 125 PSI 207 Legend: 3-M Code: 008091F Unit Price: $96.03	$96.03
3-J	008784F	Relay Low Nox 207, 267, 337, 407 Legend: 3-J Code: 008784F Unit Price: $77.98	$77.98
3-HM	006731F	Return Header ASME CI 207, 267, 337, 407 Legend: 3-HM Code: 006731F Unit Price: $175.69	$175.69
3-B	310732	Burner 207,ea Legend: 3-B Code: 310732 Unit Price: $76.70	$76.70
3-B	310732	Burner 267,ea Legend: 3-B Code: 310732 Unit Price: $76.70	$76.70
3-B	310732	Burner 337,ea Legend: 3-B Code: 310732 Unit Price: $76.70	$76.70
3-B	310732	Burner 407,ea Legend: 3-B Code: 310732 Unit Price: $76.70	$76.70
3-C	600893B	High Limit 140 Deg - Black Epoxy 207, 267, 337, 407 Legend: 3-C Code: 600893B Unit Price: $68.23	$68.23
3-HP	006707F	Return Header (Includes 6-HP) 207, 267, 337, 407 Legend: 3-HP Code: 006707F Unit Price: $180.00	$180.00
3-R	010265F	Refractory Retainer Kit 407 Legend: 3-R Code: 010265F Unit Price: $51.36	$51.36
3-R	010264F	Refractory Retainer Kit 337 Legend: 3-R Code: 010264F Unit Price: $51.36	$51.36
3-R	010263F	Refractory Retainer Kit 267 Legend: 3-R Code: 010263F Unit Price: $51.36	$51.36
3-R	010262F	Refractory Retainer Kit 207 Legend: 3-R Code: 010262F Unit Price: $51.36	$51.36
3-P	010236F	Pilot Mounting Bracket 407 Legend: 3-P Code: 010236F Unit Price: $20.21	$20.21
3-P	010234F	Pilot Mounting Bracket 267 Legend: 3-P Code: 010234F Unit Price: $20.21	$20.21
3-P	010235F	Pilot Mounting Bracket 337 Legend: 3-P Code: 010235F Unit Price: $20.21	$20.21
3-P	010233F	Pilot Mounting Bracket 207 Legend: 3-P Code: 010233F Unit Price: $20.21	$20.21
4-M	052871F	Deliming Kit 207, 267, 337, 407 Legend: 4-M Code: 052871F Unit Price: $304.78	$304.78
4-HM	010370F	Tube Bundle Cupro Nickel ASME 337 Legend: 4-HM Code: 010370F Unit Price: $2,114.71	$2,114.71
4-HM	010371F	Tube Bundle Cupro Nickel ASME 407 Legend: 4-HM Code: 010371F Unit Price: $2,338.28	$2,338.28
4-HM	010369F	Tube Bundle Cupro Nickel ASME 267 Legend: 4-HM Code: 010369F Unit Price: $1,927.75	$1,927.75
4-HM	010368F	Tube Bundle Cupro Nickel ASME 207 Legend: 4-HM Code: 010368F Unit Price: $1,715.07	$1,715.07
4-HM	010057F	Tube Bundle Copper ASME 337 Legend: 4-HM Code: 010057F Unit Price: $1,682.53	$1,682.53
4-HM	010058F	Tube Bundle Copper ASME 407 Legend: 4-HM Code: 010058F Unit Price: $1,781.46	$1,781.46
4-HM	006733F	Tube Bundle Copper ASME 267 Legend: 4-HM Code: 006733F Unit Price: $1,593.19	$1,593.19
4-HM	010055F	Tube Bundle Copper ASME 207 Legend: 4-HM Code: 010055F Unit Price: $1,498.33	$1,498.33
4-HP	010367F	Tube Bundle Cupro Nickel 407 Legend: 4-HP Code: 010367F Unit Price: $2,370.81	$2,370.81
4-HP	010365F	Tube Bundle Cupro Nickel 267 Legend: 4-HP Code: 010365F Unit Price: $1,957.59	$1,957.59
4-HP	010366F	Tube Bundle Cupro Nickel 337 Legend: 4-HP Code: 010366F Unit Price: $2,147.22	$2,147.22
4-HP	010364F	Tube Bundle Cupro Nickel 207 Legend: 4-HP Code: 010364F Unit Price: $1,736.73	$1,736.73
4-HP	010061F	Tube Bundle Copper 337 Legend: 4-HP Code: 010061F Unit Price: $1,354.03	$1,354.03
4-HP	010062F	Tube Bundle Copper 407 Legend: 4-HP Code: 010062F Unit Price: $1,379.71	$1,379.71
4-HP	010060F	Tube Bundle Copper 267 Legend: 4-HP Code: 010060F Unit Price: $1,268.05	$1,268.05
4-HP	010059F	Tube Bundle Copper 207 Legend: 4-HP Code: 010059F Unit Price: $850.00	$850.00
4-B	351632	Burner Orifice Nat. #26 (0-5000) 207 Legend: 4-B Code: 351632 Unit Price: $12.12	$12.12
4-B	352632	Burner Orifice Nat. #26 (0-5000) 267 Legend: 4-B Code: 352632 Unit Price: $12.12	$12.12
4-B	351632	Burner Orifice Nat. #26 (0-5000) 337 Legend: 4-B Code: 351632 Unit Price: $12.12	$12.12
4-B	351632	Burner Orifice Nat. #26 (0-5000) 407 Legend: 4-B Code: 351632 Unit Price: $12.12	$12.12
4-B	351523	Burner Orifice Nat. #31 (above 5000 ft) 207 Legend: 4-B Code: 351523 Unit Price: $12.12	$12.12
4-B	351523	Burner Orifice Nat. #31 (above 5000 ft) 267 Legend: 4-B Code: 351523 Unit Price: $12.12	$12.12
4-B	351523	Burner Orifice Nat. #31 (above 5000 ft) 337 Legend: 4-B Code: 351523 Unit Price: $12.12	$12.12
4-B	351523	Burner Orifice Nat. #31 (above 5000 ft) 407 Legend: 4-B Code: 351523 Unit Price: $12.12	$12.12
4-C	013464F	PC Board/Control 207, 267, 337, 407 Legend: 4-C Code: 013464F Unit Price: $349.00	$349.00
4-P	011926F	Pilot Tube 207, 267, 337, 407 Legend: 4-P Code: 011926F Unit Price: $20.21	$20.21
5-HM	010041F	Baffle 407 Legend: 5-HM Code: 010041F Unit Price: $188.33	$188.33
5-HM	005261F	Baffle 267 Legend: 5-HM Code: 005261F Unit Price: $137.60	$137.60
5-HM	010040F	Baffle 337 Legend: 5-HM Code: 010040F Unit Price: $142.71	$142.71
5-HM	010038F	Baffle 207 Legend: 5-HM Code: 010038F Unit Price: $137.60	$137.60
5-HP	010041F	Baffle 407 Legend: 5-HP Code: 010041F Unit Price: $188.33	$188.33
5-HP	010040F	Baffle 337 Legend: 5-HP Code: 010040F Unit Price: $156.94	$156.94
5-HP	010038F	Baffle 207 Legend: 5-HP Code: 010038F Unit Price: $104.62	$104.62
5-HP	005261F	Baffle 267 Legend: 5-HP Code: 005261F Unit Price: $137.60	$137.60
5-B	010042F	Blower 207, 267, 337, 407 Legend: 5-B Code: 010042F Unit Price: $425.39	$425.39
5-C	013640F	LCD Display Manufactured from 1/2011 207, 267, 337, 407 Legend: 5-C Code: 013640F Unit Price: $299.00	$299.00
5-P	010349F	Hi Tension Wire IID 207, 267, 337, 407 Legend: 5-P Code: 010349F Unit Price: $76.17	$76.17
5-M	010347F	Wire/Harness 207, 267, 337, 407 Legend: 5-M Code: 010347F Unit Price: $201.09	$201.09
6-HM	007870F	Stud Bolt Kit 207, 267, 337, 407 Legend: 6-HM Code: 007870F Unit Price: $122.07	$122.07
6-HP	008259F	Flange Nut Kit 207, 267, 337, 407 Legend: 6-HP Code: 008259F Unit Price: $36.31	$36.31
6-B	010338F	Combustion Air Orifice Plate 207 Legend: 6-B Code: 010338F Unit Price: $41.84	$41.84
6-B	010339F	Combustion Air Orifice Plate 267 Legend: 6-B Code: 010339F Unit Price: $41.84	$41.84
6-B	010340F	Combustion Air Orifice Plate 337 Legend: 6-B Code: 010340F Unit Price: $41.84	$41.84
6-B	010341F	Combustion Air Orifice Plate 407 Legend: 6-B Code: 010341F Unit Price: $41.84	$41.84
6-C	009577F	Temperature Sensor 207, 267, 337, 407 Legend: 6-C Code: 009577F Unit Price: $102.45	$102.45
6-P	011927F	Adapter Nut (Metric) 207, 267, 337, 407 Legend: 6-P Code: 011927F Unit Price: $37.21	$37.21
6-M	013491F	Control Bezel Manufactured From 1/2011 207, 267, 337, 407 Legend: 6-M Code: 013491F Unit Price: $260.38	$260.38
6-M	009491F	Control Bezel Manufactured Prior 1/2011 207, 267, 337, 407 Legend: 6-M Code: 009491F Unit Price: $212.17	$212.17
7-HM	800014B	Header Gasket (9) 207, 267, 337, 407 Legend: 7-HM Code: 800014B Unit Price: $40.55	$40.55
7-HP	006713F	O-Ring Gasket (2) 207, 267, 337, 407 Legend: 7-HP Code: 006713F Unit Price: $45.56	$45.56
7-B	010871F	Cooling Fan 207, 267, 337, 407 Legend: 7-B Code: 010871F Unit Price: $12.11	$12.11
7-C	008062F	Blower Pressure Switch 207 Legend: 7-C Code: 008062F Unit Price: $96.03	$96.03
7-C	008135F	Blower Pressure Switch 267 Legend: 7-C Code: 008135F Unit Price: $96.03	$96.03
7-C	010354F	Blower Pressure Switch 337 Legend: 7-C Code: 010354F Unit Price: $94.38	$94.38
7-C	010355F	Blower Pressure Switch 407 Legend: 7-C Code: 010355F Unit Price: $94.38	$94.38
7-M	013492F	Switch/Decal Membrane Manufactured From 1/2011 207, 267, 337, 407 Legend: 7-M Code: 013492F Unit Price: $84.79	$84.79
7-M	009492F	Switch/Decal Membrane Manufactured Prior 1/2011 207, 267, 337, 407 Legend: 7-M Code: 009492F Unit Price: $84.79	$84.79
8-HM	062234B	Unitherm Governor 207, 267, 337, 407 Legend: 8-HM Code: 062234B Unit Price: $90.66	$90.66
8-HP	006805F	Sensor Well Millivolt 207, 267, 337, 407 Legend: 8-HP Code: 006805F Unit Price: $58.02	$58.02
8-HP	006714F	Sensor Adapter Digital Electronic 207, 267, 337, 407 Legend: 8-HP Code: 006714F Unit Price: $55.97	$55.97
8-C	013733F	Fuse 5 AMP 207, 267, 337, 407 Legend: 8-C Code: 013733F Unit Price: $32.54	$32.54
8-M	009487F	Control Bezel Cover 207, 267, 337, 407 Legend: 8-M Code: 009487F Unit Price: $44.46	$44.46
9-HP	006715F	Bypass Kit 207, 267, 337, 407 Legend: 9-HP Code: 006715F Unit Price: $69.00	$69.00
9-HM	013792F	UG Retainer Spring 207, 267, 337, 407 Legend: 9-HM Code: 013792F Unit Price: $46.49	$46.49
9-M	010350F	Gasket Insulation (Swaybrace & Jacket Top) 207, 267, 337, 407 Legend: 9-M Code: 010350F Unit Price: $47.42	$47.42
10-HM	062235B	Bypass Valve 207, 267, 337, 407 Legend: 10-HM Code: 062235B Unit Price: $59.81	$59.81
10-HP	006716F	Bypass Valve 207, 267, 337, 407 Legend: 10-HP Code: 006716F Unit Price: $56.18	$56.18
10-M	010348F	Blower/Air Pressure Switch Sample Tube 207, 267, 337, 407 Legend: 10-M Code: 010348F Unit Price: $37.21	$37.21
11-HM	013794F	Bypass Spring 267, 337, 407 Legend: 11-HM Code: 013794F Unit Price: $79.02	$79.02
11-HM	850252	Bypass Spring 207 Legend: 11-HM Code: 850252 Unit Price: $5.60	$5.60
11-HP	006717F	Bypass Dam/Shaft 207, 267, 337, 407 Legend: 11-HP Code: 006717F Unit Price: $58.02	$58.02
12-HM	013793F	Drain Valve 207, 267, 337, 407 Legend: 12-HM Code: 013793F Unit Price: $7.46	$7.46
12-HP	006718F	Bypass Spring 207, 267, 337, 407 Legend: 12-HP Code: 006718F Unit Price: $48.94	$48.94
12-M	011636	Tie Down Bracket 207, 267, 337, 407 Legend: 12-M Code: 011636 Unit Price: $19.06	$19.06
13-HM	003765F	Sensor Well 207, 267, 337, 407 Legend: 13-HM Code: 003765F Unit Price: $83.21	$83.21
13-HP	006719F	Unitherm Governor 207, 267, 337, 407 Legend: 13-HP Code: 006719F Unit Price: $86.11	$86.11
13-M	011733F	Roll-Out Switch 250 Deg (Upgrade) 207, 267, 337, 407 Legend: 13-M Code: 011733F Unit Price: $79.02	$79.02
13-M	011745F	Roll-Out Switch 250 Deg 207, 267, 337, 407 Legend: 13-M Code: 011745F Unit Price: $79.02	$79.02
14-HM	300203	Well Retaining Clip 207, 267, 337, 407 Legend: 14-HM Code: 300203 Unit Price: $0.92	$0.92
14-HP	006720F	Unitherm Governor Plug 207, 267, 337, 407 Legend: 14-HP Code: 006720F Unit Price: $62.78	$62.78
14-M	012011	Texas Code Add/On (ASME Only) 207, 267, 337, 407 Legend: 14-M Code: 012011 Unit Price: $389.09	$389.09
15-HM	003766F	Inlet & Outlet Flange 207, 267, 337, 407 Legend: 15-HM Code: 003766F Unit Price: $123.22	$123.22
15-HP	006721F	Drain Plug 207, 267, 337, 407 Legend: 15-HP Code: 006721F Unit Price: $26.07	$26.07
16-HM	062236B	Flange Gasket 1 1/2" Connections 207, 267, 337, 407 Legend: 16-HM Code: 062236B Unit Price: $20.44	$20.44
17-HM	005264F	Rear Drain Plug & Cover 207, 267, 337, 407 Legend: 17-HM Code: 005264F Unit Price: $25.62	$25.62
17-HP	006723F	2 in. PVC Connector and Nut 207, 267, 337, 407 Legend: 17-HP Code: 006723F Unit Price: $66.88	$66.88
18-HM	013738F	UG Plug 207, 267, 337, 407 Legend: 18-HM Code: 013738F Unit Price: $55.31	$55.31
18-HP	006724F	O-Ring (2) 207, 267, 337, 407 Legend: 18-HP Code: 006724F Unit Price: $44.84	$44.84
19-HP	006826F	Inlet/Outlet Header Baffle w/Header Dam 207, 267, 337, 407 Legend: 19-HP Code: 006826F Unit Price: $54.41	$54.41
