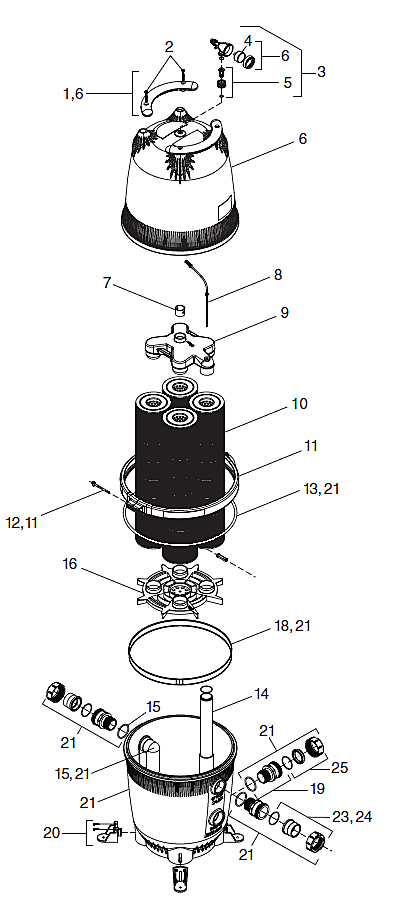

JANDY CV SERIES 340, 460 AND 580

Legend	Code	Name	Unit Price
N/S	SEFL1002	Sweep Elbow Legend: N/S Code: SEFL1002 Unit Price: $28.56	$28.56
N/S	R0395500	Filter Tank Drain Adapter, CL/DEL Series Legend: N/S Code: R0395500 Unit Price: $34.82	$34.82
1	R0357100	Handle Assy w/ hardware (set of 2) Legend: 1 Code: R0357100 Unit Price: $93.35	$93.35
2	R0359900	Handle Hardware (set of 4) Legend: 2 Code: R0359900 Unit Price: $76.23	$76.23
3	R0357200	Gauge/Air Release Assy Legend: 3 Code: R0357200 Unit Price: $101.82	$101.82
4	R0359600	Pressure Gauge Legend: 4 Code: R0359600 Unit Price: $50.89	$50.89
5	R0552000	Tank Adapter w/ O-ring - Union Legend: 5 Code: R0552000 Unit Price: $32.10	$32.10
6	R0554700	Tank Top 340 & 460 sq. ft. Legend: 6 Code: R0554700 Unit Price: $592.92	$592.92
6	R0357300	Tank Top, 580 sq. ft. Legend: 6 Code: R0357300 Unit Price: $650.62	$650.62
7	R0357700	Top Spacer Legend: 7 Code: R0357700 Unit Price: $36.69	$36.69
8	R0358700	Breather Tube Assy Legend: 8 Code: R0358700 Unit Price: $24.53	$24.53
9	R0357600	Manifold Assy Legend: 9 Code: R0357600 Unit Price: $173.64	$173.64
10	R0554500	Filter Cartridge, 85 sq. ft., (4 required) 340 sq. ft. Legend: 10 Code: R0554500 Unit Price: $261.54	$261.54
10	R0554600	Filter Cartridge, 115 sq. ft., (4 required) 460 sq. ft. Legend: 10 Code: R0554600 Unit Price: $187.50	$187.50
10	R0357900	Filter Cartridge, 145 sq. ft., (4 required) 580 sq ft. Legend: 10 Code: R0357900 Unit Price: $384.62	$384.62
11	R0357400	Tank Clamp Ring w/ Knob Assy Legend: 11 Code: R0357400 Unit Price: $474.55	$474.55
12	R0357500	Threaded Rod and Retainer Legend: 12 Code: R0357500 Unit Price: $111.34	$111.34
13	R0357800	Tank O-ring Legend: 13 Code: R0357800 Unit Price: $77.17	$77.17
14	R0555100	Outlet Tube/Elbow Assy w/ O-rings 340, 460, and 580 sq. ft. Legend: 14 Code: R0555100 Unit Price: $79.21	$79.21
15	R0358400	Inlet Elbow w/O-ring Legend: 15 Code: R0358400 Unit Price: $81.53	$81.53
16	R0358500	Filter Cartridge Support Legend: 16 Code: R0358500 Unit Price: $119.34	$119.34
17	R0358000	O-ring Replacement Kit (not shown) Legend: 17 Code: R0358000 Unit Price: $39.89	$39.89
18	R0405200	Ring, Retaining Legend: 18 Code: R0405200 Unit Price: $140.07	$140.07
19	R0465600	Bulkhead Assy w/ O-ring, CV Filter Legend: 19 Code: R0465600 Unit Price: $96.49	$96.49
20	R0465500	Anchor Bracket, (Qty 4) Legend: 20 Code: R0465500 Unit Price: $128.71	$128.71
21	R0465400	Tank Bottom Assy, CV Filter Legend: 21 Code: R0465400 Unit Price: $794.82	$794.82
23	R0461800	Universal Half Unions (Set of 3) and Drain Plug Cap Legend: 23 Code: R0461800 Unit Price: $134.68	$134.68
24	R0522900	Universal Half Union (Set of 1) Legend: 24 Code: R0522900 Unit Price: $56.27	$56.27
25	R0523000	Drain Cap Assy Legend: 25 Code: R0523000 Unit Price: $46.49	$46.49
