Baracuda MX8 Parts

Select Manufacturer

Zodiac

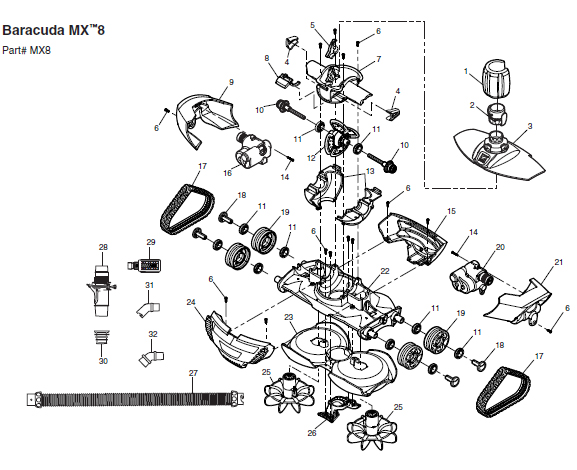

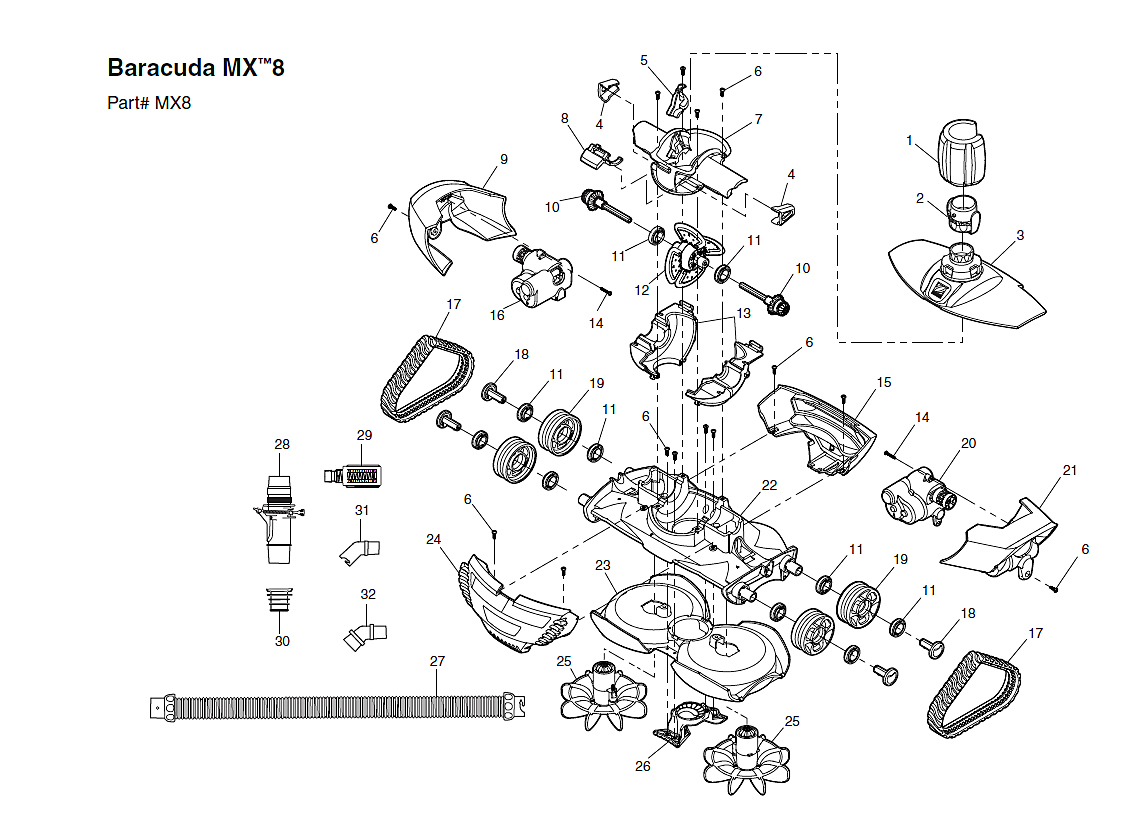

CLICK HERE FOR LARGER IMGAGE

Legend	Code	Name	Unit Price
1	R0526800	MX 8 Hose Float Legend: 1 Code: R0526800 Unit Price: $16.07	$16.07
2	R0526900	Quick Connector (Blue) Legend: 2 Code: R0526900 Unit Price: $13.07	$13.07
3	R0525400	MX 8 Top Cover w/ Swivel Assy Legend: 3 Code: R0525400 Unit Price: $54.46	$54.46
4	R0526500	MX 8 Engine Seal Legend: 4 Code: R0526500 Unit Price: $8.43	$8.43
5	R0526400	MX 8 Engine Guide Legend: 5 Code: R0526400 Unit Price: $7.58	$7.58
6	R0527100	Screw, M4x12mm, Phillips #2 Pan Head Legend: 6 Code: R0527100 Unit Price: $4.83	$4.83
7	R0525900	MX 8 Middle Engine Housing Legend: 7 Code: R0525900 Unit Price: $37.75	$37.75
8	R0526300	MX 8 Cover Latch Legend: 8 Code: R0526300 Unit Price: $8.25	$8.25
9	R0526600	MX 8 Body Panel, Right (B) Legend: 9 Code: R0526600 Unit Price: $40.38	$40.38
10	R0525100	MX 8 Drive Shaft Assy Legend: 10 Code: R0525100 Unit Price: $35.38	$35.38
11	R0527000	Bearing (Wheel & Engine) Legend: 11 Code: R0527000 Unit Price: $19.48	$19.48
13	R0525800	MX 8 Lower Engine Housing Legend: 13 Code: R0525800 Unit Price: $27.17	$27.17
14	R0527200	Screw, Thread Forming, #6-18 7/8" Type A, Phillips #2 Pan Head Legend: 14 Code: R0527200 Unit Price: $4.83	$4.83
15	R0525600	MX 8 Body Panel, Rear (D) Legend: 15 Code: R0525600 Unit Price: $25.59	$25.59
17	R0526100	MX 8 Track Legend: 17 Code: R0526100 Unit Price: $34.89	$34.89
18	R0526200	MX 8 Wheel Pin Legend: 18 Code: R0526200 Unit Price: $6.56	$6.56
19	R0526000	MX 8 Wheel Legend: 19 Code: R0526000 Unit Price: $15.78	$15.78
20	R0524700	MX 8 Direction Control Device, Side A Legend: 20 Code: R0524700 Unit Price: $110.48	$110.48
21	R0526700	MX 8 Body Panel, Left (A) Legend: 21 Code: R0526700 Unit Price: $40.38	$40.38
22	R0525200	MX 8 Chassis Assy Legend: 22 Code: R0525200 Unit Price: $80.35	$80.35
23	R0525700	MX 8 Lower Body Housing Legend: 23 Code: R0525700 Unit Price: $60.72	$60.72
24	R0525500	MX 8 Body Panel, Front {C} Legend: 24 Code: R0525500 Unit Price: $25.59	$25.59
25	R0525000	MX 8 Scrubber Assy Legend: 25 Code: R0525000 Unit Price: $35.68	$35.68
26	R0525300	MX 8 Inlet Assy Legend: 26 Code: R0525300 Unit Price: $20.64	$20.64
27	R0527700	Twist Lock Hose- 1 Meter, Blue/Gray Legend: 27 Code: R0527700 Unit Price: $43.63	$43.63
