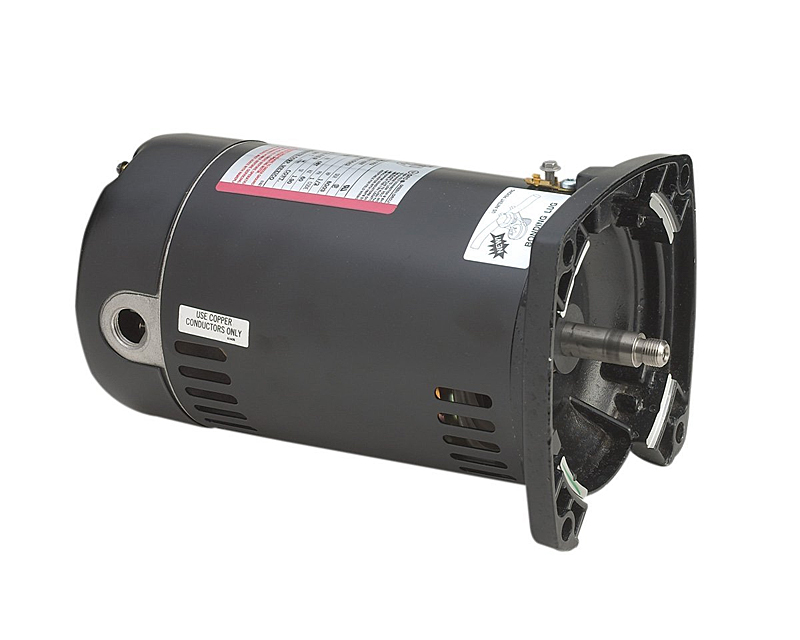

AO Smith Square Flange 48Y Frame Threaded Shaft motor 1HP Energy efficient
- $309.00
- Product Code: SQ1102
(Note) All AO Smith Motors are non SWITCH or WIRES
A. O. Smith serves the pool and spa industry with a comprehensive line of switch and "switchless" electric motors that are designed to stand up to the weather, dirt, and pool chemicals. A. O. Smith's Conservationist motor combines our two-compartment design and a proven switch that provides years of reliable service. The Centurion line of two-pole 56 frame switchless pool motors bring dependability and economy to pool, spa, and jetted tub pumping applications. Our switchless design eliminated the majority of moving parts found in these motors, enhancing reliability.
Features
- NEMA 56Y Face Mount
- Auto Protector
- Capacitor Start
- Open Drip Proof
- Not Reversible
- Rotation (CCW)
- Sealed Ball Bearings
- Sealed Switch Design
- 60 Hz
| HP | Volts | RPM | Max Amps | SF | Frame | Stock No. | Shaft |
| 1/2 | 115/230 | 3450 | 13.4/6.7 | 1.9 | 48Y | SQ1052 | Thd. |
| 3/4 | 115/230 | 3450 | 15.3/7.6 | 1.65 | 48Y | SQ1072 | Thd. |
| 1 | 115/230 | 3450 | 19.2/9.6 | 1.5 | 48Y | SQ1102 | Thd. |
| 1.5 | 230 | 3450 | 10.4 | 1.47 | 48Y | SQ1152 | Thd. |
| 2 | 230 | 3450 | 11.2 | 1.3 | 48Y | SQ1202 | Thd. |
| 3 | 230 | 3450 | 15.4 | 1.15 | 48Y | SQ1302 | Thd |
