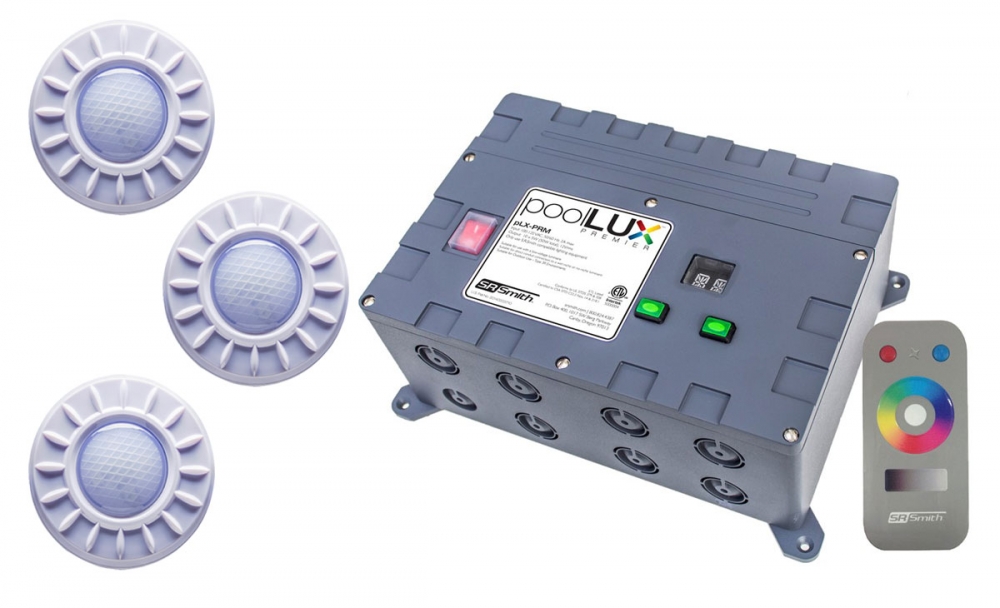

S.R.Smith PoolLUX Premier Lighting Control System with Remote, Includes 3 Mod-Lite Light Kit, 3ML-PLX-PRM
- $3,047.33
- Product Code: 3ML-PLX-PRM
The poolLUX™ Premier Custom Lighting System with Wireless Control gives you advanced color control and dimming options for your Treo, Treo Micro, Fiberglass LED lights and Color Light Stream products.
Kit Includes
Key Features:
Brochure
Data Sheet
Installation Instructions
Kit Includes
- pLX-PRM Premier 70W
- Three Mod-Lite, 80' cord, RGB LED pool lights
- Remote control
- Works exclusively with S.R.Smith LED lights
- Extended range (100’ Line of Sight) Wireless remote with color selection wheel and dimming bar
- (6) standard colors and (2) shows via on/off power toggle
- Up to (49) color variations via color selection wheel
- Multiple brightness (dimming) options available - (4) via wireless remote dimming bar and (15) available via the control panel dimming button
- (10) wiring station system* with a built in 70W power supply (*7W max per station)
- Corrosion resistant (NEMA 3R), sound dampening housing
- (6) low-voltage and (2) line-voltage combination knockouts (3/4” or 1”)
- Onboard dry contact option for limited 3rd party system interface – Contact factory for details
- ETL Listed - Conforms to UL379 (Pool, Spa and Fountain Power Unit Standard)
- Certified to CSA C22.2#218.1
- Two-year warranty
Specifications: Exclusively compatible with S.R.Smith LED lighting products. Durable polycarbonate housing - corrosion resistant. ETL listed - conforms to UL 379 & 508 standards, certified to CSA C22.2#14 and C22.2#218.1.
Brochure
Data Sheet
Installation Instructions
S.R.Smith, LLC warrants to the original retail purchaser that products manufactured by S.R.Smith, when properly assembled and installed in accordance with S.R.Smith's assembly and installation instructions, and properly used and maintained, shall be free from defects in materials and workmanship for the warranty period of three (3) years from the date of retail purchase except for the following items set forth below:
- Game Accessories (ball, pump, net): Ninety Days
- WetDek: One Year
- Resin Transfer Molded (RTM) Slides, Seats, Loungers, and Tables: One Year
- Aquatic Lift System Frames (excluding the powder coated finish, which may become scratched with normal use): Five Years
- Aquatic Lift System Electronic and Motor Components (excluding batteries): Two Years
- Aquatic Lift batteries: One year prorated as follows: 100% of cost during the first ninety days of ownership and 50 percent of cost after ninety days and prior to expiration of one-year period. Normal maintenance and care of the unit, including charge of the battery when not in use is recommended.
- Lighting:
Product Parts Labor LED Lighting - Mod-Lite, Micro, Kelo, Treo, Fiberglass, Color Light Stream 3-Years 1-Year PoolLUX Controls- Power, Plus, Plus2, Premier 2-Years 1-Year PT- Series 2-Years 1-Year Wiretran Control 1-Year 1-Year TX-30 Control 1-Year 1-Year WPC Controls 1-Year 1-Year Fiber Optic Illuminators - 6004 Series 3-Years 1-Year Fiber Optic Cable 1-Year n/a Water Features 1-Year n/a
To register your S.R.Smith product, visit the Product Registration page at: www.srsmith.com.
