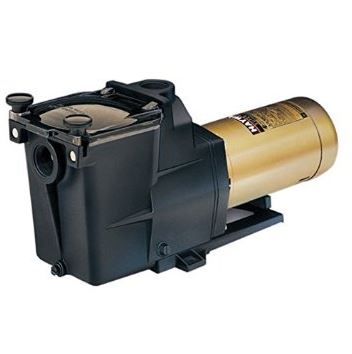

Hayward Super Pump SP2605X7 .75 HP 115 230V Single Speed

0 reviews / Write a review

$740.94 Parts Available

Product Code: W3SP2605X7

Qty

Frequently Bought Together

Price for all: $776.15

This item: Hayward Super Pump SP2605X7 .75 HP 115 230V Single Speed $740.94

1.5 in union adapter CPVC 2 pack $35.21 [view detail]

HAYWARD POOL PUMPS - Super Pump efficient, dependable and proven. The Hayward Super Pump has all the quality features you expect from Hayward. For replacement or new pool installations, the Super Pump sets the standard of excellence and value.

Applications

Hayward Super Pump for in-ground pools of all types and sizes
Hayward Super Pump for in-ground spas

Hayward Super Pump Features

Self-priming (suction lift up to 8’ above water level)
Exclusive swing-aside hand knobs make strainer cover removal easy
See-thru strainer cover lets you see when basket needs cleaning
Super-size 110 cubic inch basket has extra leaf-holding capacity. Load-extender ribbing ensures free flowing operation
All components molded of corrosion proof reinforced thermplastic for extra durability and long life
Heavy-duty, high performance motor for quieter, cooler operation
Service-ease design gives simple access to all internal parts

Performance Data	Hayward Super Pump Output (GPM) vs. Total Resistance to Flow (Feet of Head)
Model No. Max Rated	20ft	30ft	40ft	50ft	60ft	70ft
Hayward Super Pump SP2600X5	48	38	23	—	—	—
Hayward Super Pump SP2605X7	61	52	41	25	—	—
Hayward Super Pump SP2607X10	74	65	54	40	9	—
Hayward Super Pump SP2610X15	83	75	65	53	36	—
Hayward Super Pump SP2615X20	122	111	98	84	66	38

Standard Efficiency Max Rated Single-Speed

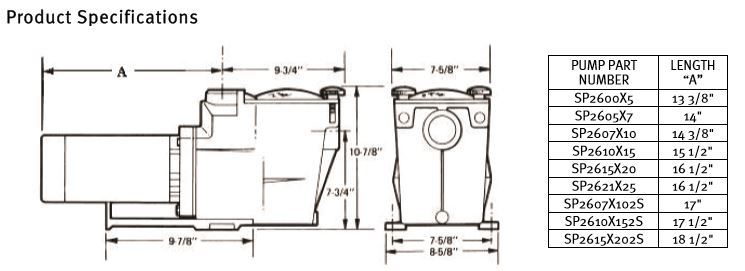

Model Number	Total H.P.	Rated H.P.	Service Factor	Voltage	Pipe Size	Dim. "A"	Ctn. Qty.	Ctn. Weight
Super Pump SP2600X5	0.60	1/2	1.20	115	1 1/2"	13 1/4"	1	29 lbs.
Super Pump SP2605X7	0.75	3/4	1.00	115/230	1 1/2"	13 7/8"	1	32 lbs.
Super Pump SP2607X10	1.10	1	1.10	115/230	1 1/2"	14 1/4"	1	35 lbs.
Super Pump SP2610X15	1.50	1 1/2	1.00	115/230	1 1/2"	15 3/8"	1	40 lbs.
Super Pump SP2615X20	2.00	2	1.00	115/230	2"	15 7/8"	1	48 lbs.
