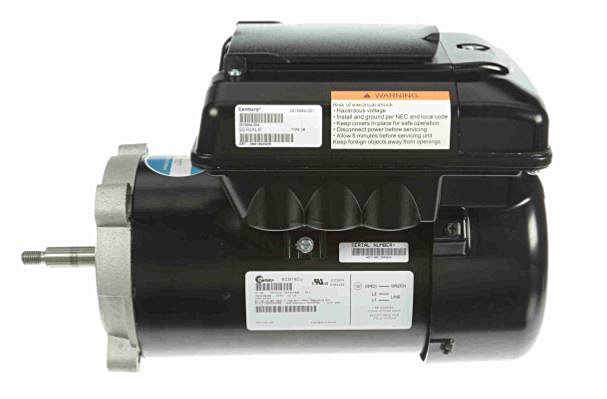

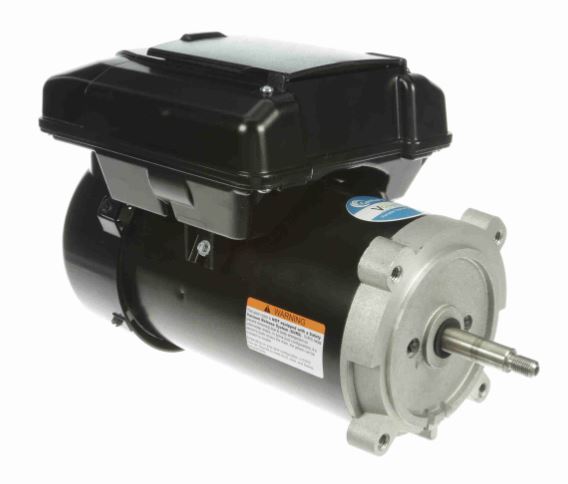

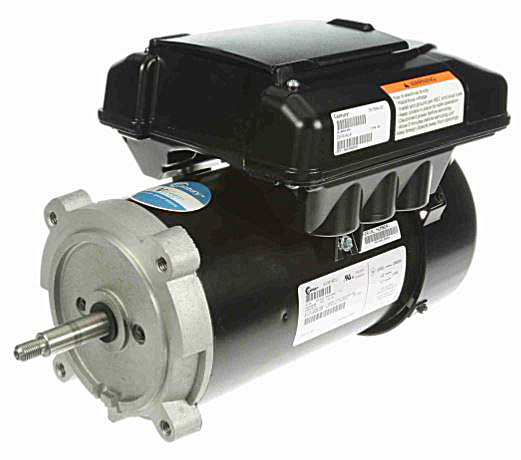

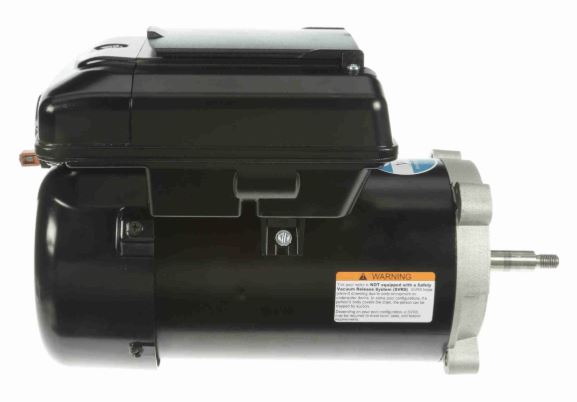

CENTURY VGREEN 165 Variable Speed Motor C-Face Flange 1.65THP 208-230V (BLACK)

CENTURY VGREEN 165 Variable Speed Motor C-Face Flange 1.65THP 208-230V (BLACK)

0 reviews / Write a review

$711.64

Product Code: ECM16CU

Qty

The Century® VGreen® 165 variable speed motor is a durable TEFC replacement motor designed to deliver premium energy savings from 40 percent to 80 percent versus a standard single speed motor.

REPLACE ANY MOTOR WITH A VGREEN® 165 MOTOR

The VGreen 165 motor can replace any single speed motor without replacing the pump, turning any pool into a high-effi ciency system that is better for the environment and lowers the cost of pool ownership.

VGREEN® MOTOR EFFICIENCY

Integrated user interface allows for easier and faster installation
Durable TEFC construction with ECM technology delivers 40 to 80 percent energy savings versus a single speed motor

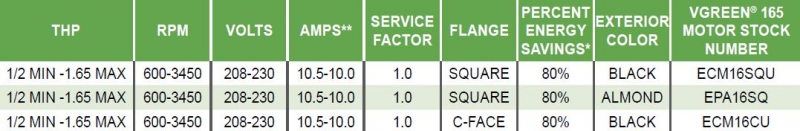

FEATURES

Freeze Protection
Ball Bearing
TEFC
Rotation: CCWPE
Single Phase
50/60 Hz
Full Variable Speed (600-3450 RPM)
Max Output of 1.65 THP
303 Stainless Steel Shaft
Class F Insulation
50°C Ambient
UV and Rain-Proof Enclosure
Digital Inputs for Third Party Automation
VGreen 270 User Interface* Compatibility

PROGRAMMING FLEXIBILITY

The VGreen® 165 variable speed motor offers three variable speeds, programmable from 600 to 3450 RPM, allowing users to easily identify and set the appropriate speeds to minimize energy consumption and lower the overall cost of pool ownership, all while maintaining the proper pool environment. The programming fl exibility offered by the VGreen 165 variable speed motor makes it possible for pool owners to easily identify and adjust speed and duration settings necessary to maintain their pools and to maximize energy savings.

REPLACEMENT VERSATILITY

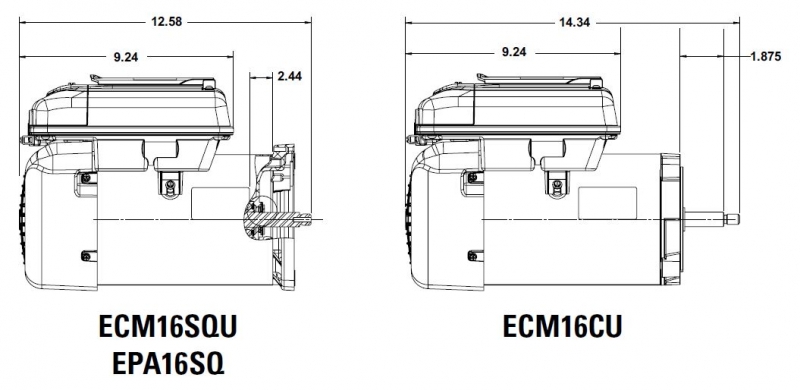

Available in both square fl ange and C-face confi gurations, the highly versatile VGreen® 165 variable speed motor can be utilized in pool pump applications ranging from 1/2 to 1.65 total horsepower. Installation on most pumps, regardless of manufacturer, is as simple as replacing a standard single speed motor. There is no additional wiring or plumbing required, thanks to the VGreen motor’s integrated user interface. Equipped with digital inputs, the VGreen 165 variable speed motor is even compatible with third party pool automation systems.

18 MONTH MANUFACTURER'S WARRANTY FROM INSTALLATION DATE

CENTURY VGREEN 165 VARIABLE SPEED MOTOR OWNER'S MANUAL
